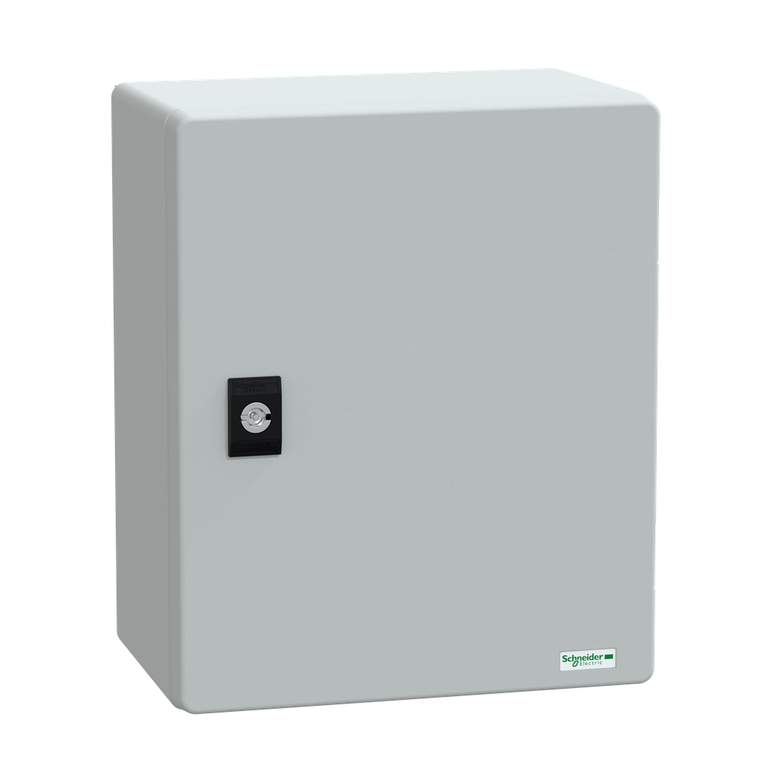

Schneider Electric NSYPLM3025PG 7035 Wm Plm308X250X160 Met Pl

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLM3025PG 7035 Wm Plm308X250X160 Met Pl

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLM3025PG

UPC:

3.60648E+12

MPN:

Condition:

New

Environmental Disclosure:

ENVPEP110118EN

Device Short Name:

PLM

Standards:

NEMA classification 13 || NEMA classification 4X || IEC 62208

Enclosure Mounting:

wall mounted

Material:

polyester reinforced with fibreglass

Ik Degree Of Protection:

IK10 IEC 62262

Enclosure Nominal Depth:

160 mm

Number Of Locks:

1

Product Name:

Thalassa PLM

Product Certifications:

UL

Ambient Air Temperature For Operation:

-40-80 °C

Device Application:

multi-purpose

Enclosure Nominal Width:

255 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Composition:

1 body || 1 door || 1 mounting plate || 1 lock

Electrical Insulation Class:

class II

Enclosure Nominal Height:

308 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Plate Description:

plain steel

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP66 IEC 60529

Accessibility For Operation:

front

Lock Type:

3 mm double-bar lock

Fire Resistance:

960 °C IEC 62208

Sustainable Offer Status:

Green Premium product

Range:

Thalassa

Removable Parts:

door by hinges || mounting plate by fixing element

Product Or Component Type:

compact enclosure

Color:

Gray RAL 7035)

Mercury Free:

Yes

Door Type:

Solid

Circularity Profile:

N/A

Brochure:

View

Catalog:

View

Datasheet:

View
