Schneider Electric

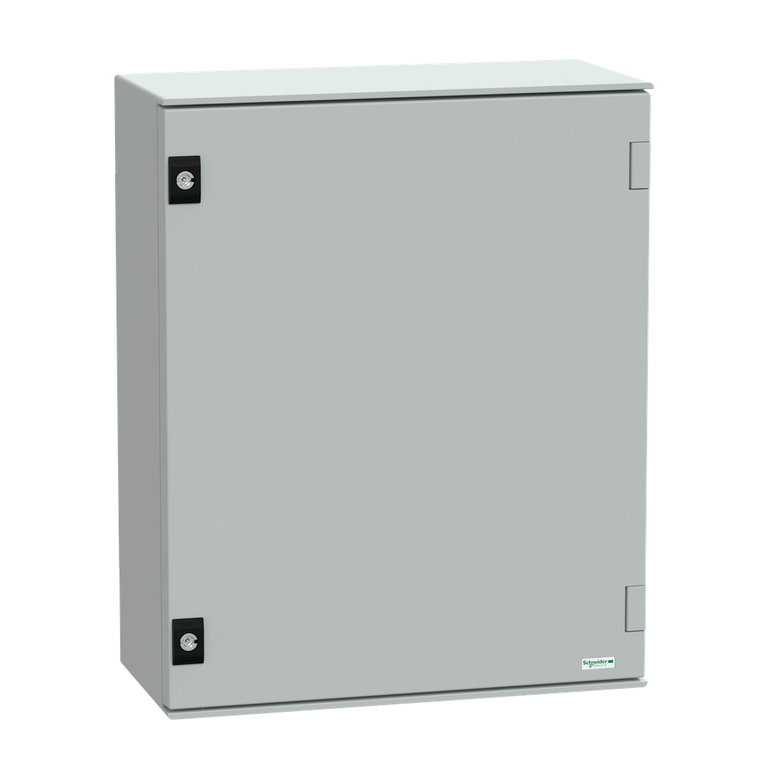

Schneider Electric NSYPLM54BG 7035 Wm Pol Plm530X430X200 Bak Pl

SKU:

NSYPLM54BG

UPC:

3606480776588

MPN:

Condition:

New

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Nominal Depth:

200 mm

Number Of Locks:

2

Standards:

NEMA classification 4X || IEC 62208 || NEMA classification 13

Enclosure Nominal Height:

530 mm

Ip Degree Of Protection:

IP66 IEC 60529

Ambient Air Temperature For Operation:

-40-80 °C

Removable Parts:

door by hinges || mounting plate by fixing element

Enclosure Mounting:

wall mounted

Circularity Profile:

N/A

Mercury Free:

Yes

Device Composition:

1 body || 1 door || 1 mounting plate || 2 lock

Accessibility For Operation:

front

Product Name:

Thalassa PLM

Fire Resistance:

960 °C IEC 62208

Device Application:

multi-purpose

Rohs Exemption Information:

Yes

Product Or Component Type:

compact enclosure

Range:

Thalassa

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ik Degree Of Protection:

IK10 IEC 62262

Device Short Name:

PLM

Material:

polyester reinforced with fibreglass

Enclosure Nominal Width:

430 mm

Door Type:

Solid

Color:

Gray RAL 7035)

Electrical Insulation Class:

class II

Product Certifications:

UL

Mounting Plate Description:

plain bakelite

Lock Type:

3 mm double-bar lock

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP110118EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Catalog:

View

Datasheet:

View
