Schneider Electric NSYPLM64G 7035 Wm Pol Plm 647X436X250

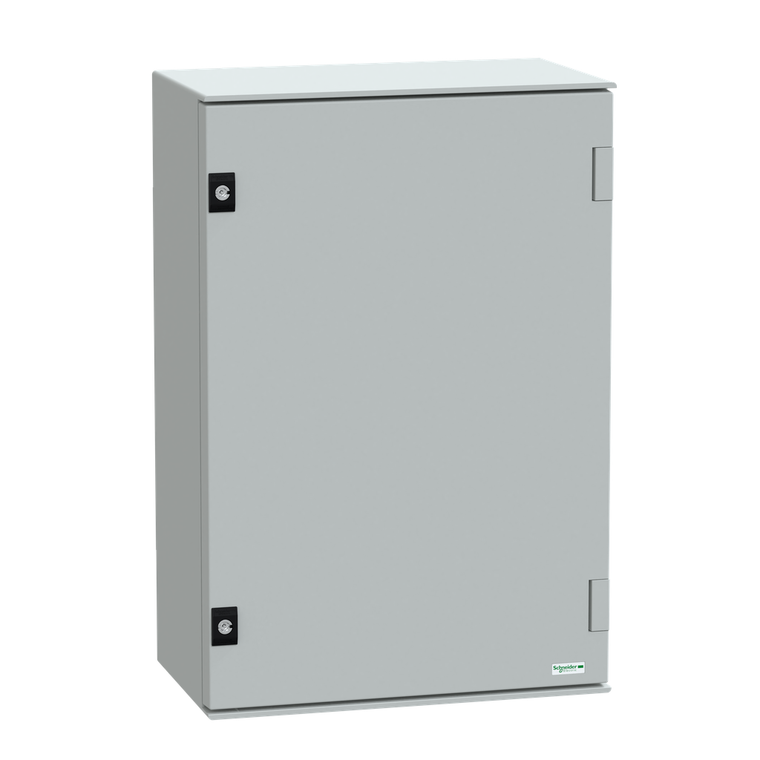

Thalassa PLM wall-mounting polyester enclosure monobloc. 647 x 436 x 250 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.
- Sustainable Offer Status:
- Green Premium product
- Material:
- polyester reinforced with fibreglass
- Environmental Disclosure:
- ENVPEP110118EN
- Enclosure Nominal Depth:
- 250 mm
- Ip Degree Of Protection:
- IP66 IEC 60529
- Range:
- Thalassa
- Mercury Free:
- Yes
- Device Composition:
- 1 body || 1 door || 2 lock
- Rohs Exemption Information:
- Yes
- Enclosure Nominal Width:
- 436 mm
- Ambient Air Temperature For Operation:
- -40-80 °C
- Product Name:
- Thalassa PLM
- Standards:
- NEMA classification 13 || NEMA classification 4X || IEC 62208
- Product Certifications:
- UL
- Circularity Profile:
- N/A
- Color:
- Gray RAL 7035)
- Removable Parts:
- door by hinges
- Fire Resistance:
- 960 °C IEC 62208
- Lock Type:
- 3 mm double-bar lock
- Mounting Plate Description:
- without mounting plate
- Door Type:
- Solid
- Ik Degree Of Protection:
- IK10 IEC 62262
- Device Short Name:
- PLM
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Application:
- multi-purpose
- Electrical Insulation Class:
- class II
- Product Or Component Type:
- compact enclosure
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Accessibility For Operation:
- front
- Enclosure Mounting:
- wall mounted
- Number Of Locks:
- 2
- Enclosure Nominal Height:
- 647 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
