Schneider Electric

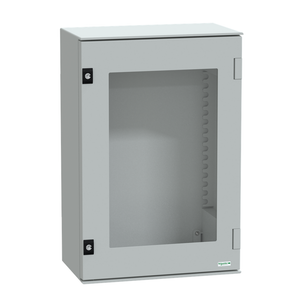

Schneider Electric NSYPLM64PG 7035 Wm Pol Plm647X436X250 Met Pl

SKU:

NSYPLM64PG

UPC:

3606480776656

MPN:

Condition:

New

Device Composition:

1 body || 1 door || 1 mounting plate || 2 lock

Electrical Insulation Class:

class II

Lock Type:

3 mm double-bar lock

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Door Type:

Solid

Enclosure Nominal Height:

647 mm

Material:

polyester reinforced with fibreglass

Product Or Component Type:

compact enclosure

Range:

Thalassa

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

Enclosure Mounting:

wall mounted

Fire Resistance:

960 °C IEC 62208

Product Name:

Thalassa PLM

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Number Of Locks:

2

Accessibility For Operation:

front

Device Short Name:

PLM

Removable Parts:

door by hinges || mounting plate by fixing element

Mounting Plate Description:

plain steel

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP110118EN

Color:

Gray RAL 7035)

Mercury Free:

Yes

Product Certifications:

UL

Ambient Air Temperature For Operation:

-40-80 °C

Enclosure Nominal Width:

436 mm

Circularity Profile:

N/A

Ip Degree Of Protection:

IP66 IEC 60529

Enclosure Nominal Depth:

250 mm

Standards:

IEC 62208 || NEMA classification 13 || NEMA classification 4X

Ik Degree Of Protection:

IK10 IEC 62262

Device Application:

multi-purpose

Catalog:

View

Datasheet:

View
