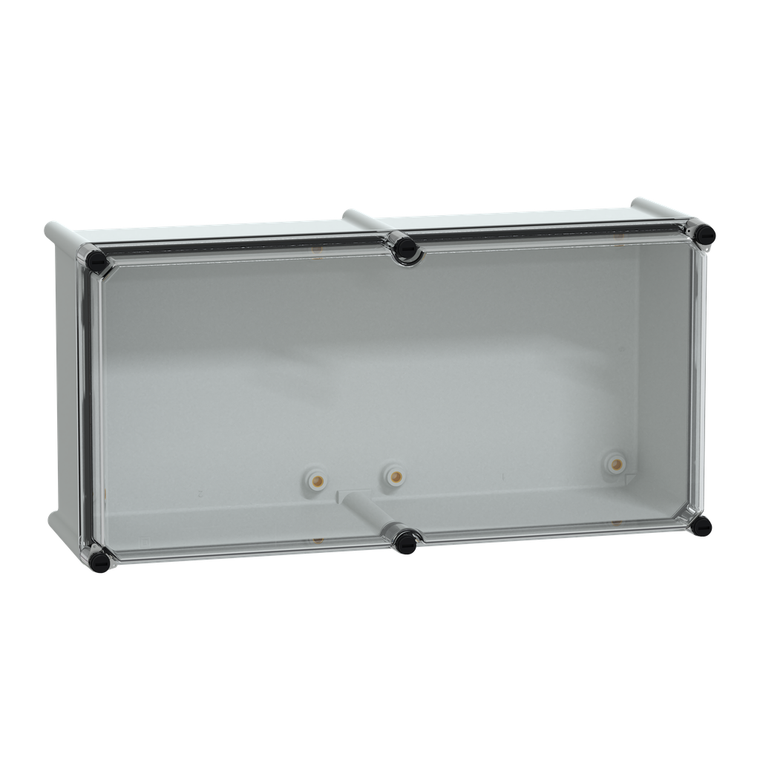

Schneider Electric NSYPLS2754G 7035 Transp Pls Box27X54X18

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLS2754G 7035 Transp Pls Box27X54X18

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLS2754G

UPC:

3.60648E+12

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Product Certifications:

UL

Electrical Insulation Class:

class II

Ik Degree Of Protection:

IK09 IEC 62262

Fire Resistance:

960 °C IEC 62208

Range:

Thalassa

Product Or Component Type:

insulating modular box

Ip Degree Of Protection:

IP66 IEC 60529

Standards:

NEMA 4X || IEC 62208 || NEMA classification 13

Environmental Disclosure:

ENVPEP110704EN

Color:

body Gray RAL 7035)

Device Application:

multi-purpose

Device Composition:

1 cover on enclosure || 1 rear part on enclosure || locking screws

Device Short Name:

PLS

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Nominal Height:

270 mm

Enclosure Nominal Depth:

180 mm

Lock Type:

slot screw

Material:

Cover polycarbonate || rear polyester reinforced with fibreglass

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Removable Parts:

cover locking screw

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Type Of Front Cover:

low transparent cover

Body Type:

one piece moulded

Mercury Free:

Yes

Enclosure Nominal Width:

540 mm

Product Name:

Thalassa PLS

Ambient Air Temperature For Storage:

-30-70 °C

Circularity Profile:

N/A

Enclosure Mounting:

wall mounted
