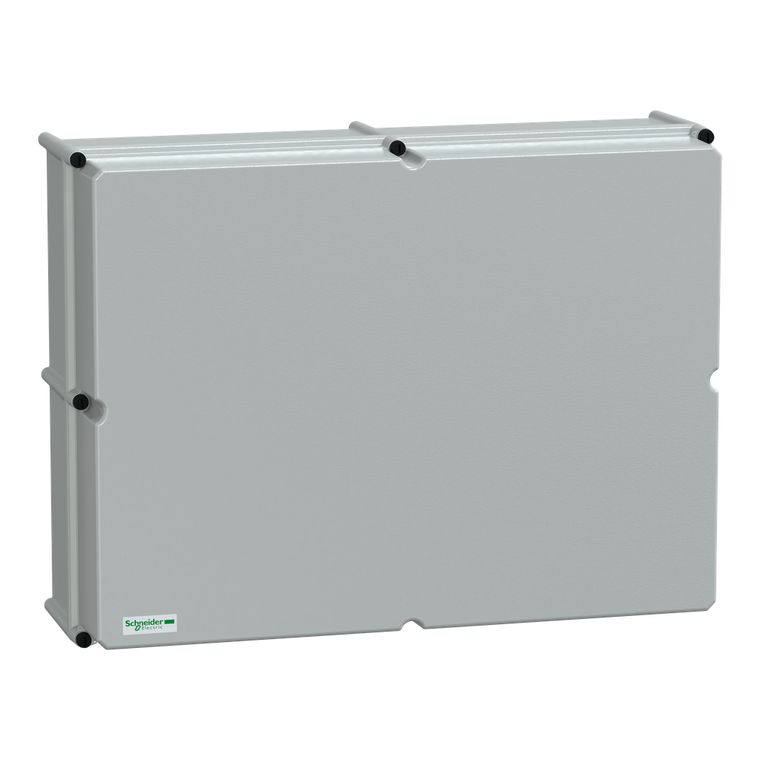

Schneider Electric NSYPLSC5472AG 7035 Opaq Pc Pls Box54X72X23

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYPLSC5472AG 7035 Opaq Pc Pls Box54X72X23

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYPLSC5472AG

UPC:

3606480777226

MPN:

Condition:

New

Removable Parts:

cover locking screw

Product Certifications:

UL

Device Short Name:

PLS

Enclosure Nominal Width:

720 mm

Body Type:

one piece moulded

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Storage:

-30-70 °C

Product Or Component Type:

insulating modular box

Enclosure Nominal Depth:

230 mm

Material:

Cover polycarbonate || rear polyester reinforced with fibreglass

Standards:

IEC 62208 || NEMA 4X || NEMA classification 13

Circularity Profile:

N/A

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Device Composition:

1 cover on enclosure || 1 rear part on enclosure || locking screws

Ip Degree Of Protection:

IP66 IEC 60529

Device Application:

multi-purpose

Color:

body Gray RAL 7035)

Type Of Front Cover:

high plain cover

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Lock Type:

slot screw

Product Name:

Thalassa PLS

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range:

Thalassa

Fire Resistance:

960 °C IEC 62208

Enclosure Nominal Height:

540 mm

Sustainable Offer Status:

Green Premium product

Electrical Insulation Class:

class II

Environmental Disclosure:

ENVPEP110704EN

Enclosure Mounting:

wall mounted

Ik Degree Of Protection:

IK09 IEC 62262
