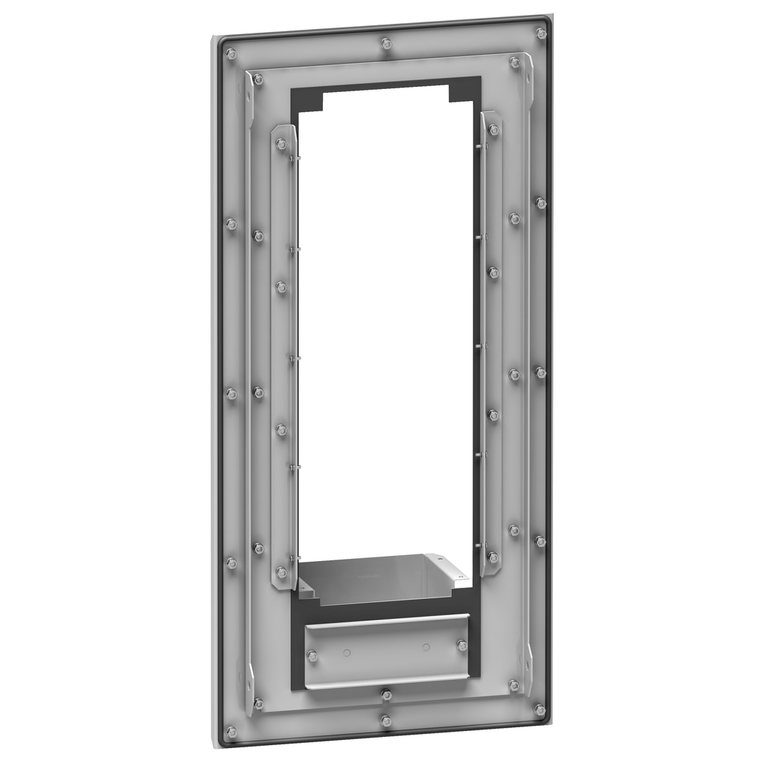

Schneider Electric NSYPTDS4 Kit Flush-Mounting Pour Atv T4

SKU:

NSYPTDS4

UPC:

3.60649E+12

MPN:

Condition:

New

Height:

external 800 mm || cut-out 735 mm

Circularity Profile:

N/A

Permanent Permissible Load:

28.7 kg

Product Specific Application:

process and utilities

Depth:

wall-enclosure separation 151.5 mm

Services:

configuration of enclosure pre-drilled back || factory installation drive flush mounting kit

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Range:

Spacial

Accessory / Separate Part Category:

mounting and fixing accessory

Nema Size:

4

Ip Degree Of Protection:

IP55 conforming to IEC 60529

Kit Composition:

1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating by screws and nuts || 1 x fixing accessories || 1 x drilling template || 1 x instruction sheet || 1 x edge protector profile, plastic || 1 x fan support || 1 x c

Mounting Location:

1 back of enclosure mounting plate || 2 inside enclosure

Product Or Component Type:

drive flush mounting kit

Sustainable Offer Status:

Green Premium product

Range Compatibility:

Altivar variable speed drive ATV630 || Altivar variable speed drive ATV930 || Spacial SF and SM enclosures || Altivar variable speed drive ATV340

Motor Power Kw:

15 kW 220/240 V || 18.5 kW 220/240 V || 22 kW 220/240 V || 30 kW 380/480 V || 37 kW 380/480 V || 45 kW 380/480 V

Environmental Disclosure:

ENVPEP100104EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Net Weight:

8.102 kg

Rohs Exemption Information:

Yes

Color:

Gray RAL 7035)

Width:

external 385 mm || cut-out 325 mm
