Schneider Electric NSYRCK29 Fixed Rack 19P 29U

Schneider Electric NSYRCK29 Fixed Rack 19P 29U

Schneider Electric
SKU:
NSYRCK29
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$75.63
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

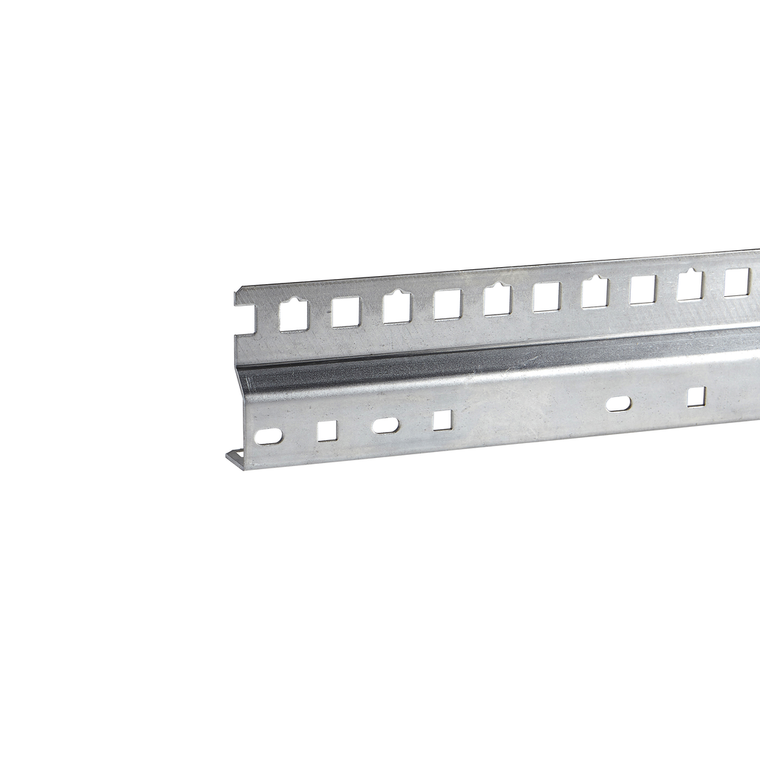

Spacial SF / SM fixed rack 19 inches. Enclosure width is 1400 mm. 29 Units of 19 inch. Electronic application. Mounting accessory. Mounting on structure of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. permissible load is 400 kg. 2 uprights and fixing elements incl.
Additional Information
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Accessory / Separate Part Category:
mounting accessory
Toxic Heavy Metal Free:
Yes
Adjustment:
adjustable in depth every 25 mm
Circularity Profile:
N/A
Mounting Support:
19" fixed support bracket
Mercury Free:
Yes
Reach Free Of Svhc:
Yes
Fixing Mode:
by fixing element
Device Composition:
fixing elements || 2 upright
Range:
Spacial
Range Compatibility:
Spacial Spacial SF || Spacial Spacial SM
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information:
Yes
Mounting Location:
on structure of enclosure
Surface Finish:
zinc coated
Number Of Units 19":
29
Rack Type:
fixed
Permanent Permissible Load:
400 kg
Enclosure Nominal Dimensions:
H: 1400 mm
Warranty:
18 months
Material:
steel
Height:
1400 mm
Product Or Component Type:
19" rack
Sustainable Offer Status:
Green Premium product
Device Application:
electronic application
Depth:
120 mm
Quantity Per Set:
set of 1
Environmental Disclosure:
ENVPEP110923EN
Reach Regulation:
Free of Substances of Very High Concern above the threshold
