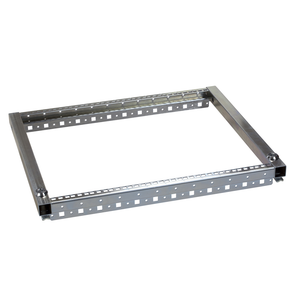

Schneider Electric NSYRCKP12 Partial Fixed Rack 19P 12U
Schneider Electric
$100.67
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Spacial SF / SM partial fixed rack 19 inches. Enclosure width is 600 mm. 12 Units of 19 inch. Electronic application. Mounting accessory. Cross rails mounting support. Mounting on top front of enclosure. Adjustable in depth every 25 mm. Steel made, zinc coated surface finish. permissible load is 2 kg per unit. 4 uprights and fixing elements incl.
- Mounting Location:
- top front of enclosure
- Device Composition:
- fixing elements || 2 upright
- Toxic Heavy Metal Free:
- Yes
- Product Or Component Type:
- 19" rack
- Number Of Units 19":
- 12
- Surface Finish:
- zinc coated
- Quantity Per Set:
- set of 1
- Height:
- 600 mm
- Sustainable Offer Status:
- Green Premium product
- Rohs Exemption Information:
- Yes
- Permanent Permissible Load:
- 2 kg per unit
- Enclosure Nominal Dimensions:
- H: 600 mm
- Rack Type:
- partial fixed
- Mounting Support:
- cross rails
- Circularity Profile:
- N/A
- Device Application:
- electronic application
- Accessory / Separate Part Category:
- mounting accessory
- Depth:
- 60 mm
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Of Svhc:
- Yes
- Range Compatibility:
- Spacial Spacial SF || Spacial Spacial SM
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Material:
- steel
- Warranty:
- 18 months
- Adjustment:
- adjustable in depth every 25 mm
- Mercury Free:
- Yes
- Range:
- Spacial
- Environmental Disclosure:
- ENVPEP110923EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Fixing Mode:
- by fixing element
- Catalog:
- View
- Datasheet:
- View
