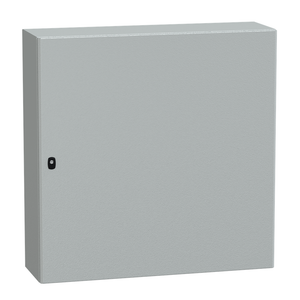

Schneider Electric NSYS3D101030DP S3D 2D H1000Xw1000Xd300+Chassis

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D101030DP S3D 2D H1000Xw1000Xd300+Chassis

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D101030DP

UPC:

3606480160325

MPN:

Condition:

New

Range:

Spacial

Product Certifications:

GL || BV || LR || UL || DNV || cUL

Circularity Profile:

N/A

Product Or Component Type:

compact enclosure

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

IEC 62208

Removable Parts:

door by hinges || cable gland plate by screws || mounting plate by fixing element

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Surface Finish:

enclosure epoxy-polyester powder

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Warranty:

18 months

Product Name:

Spacial S3D

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

Installation Accessory Type:

wall-mounting

Enclosure Nominal Height:

1000 mm

Sustainable Offer Status:

Green Premium product

Device Composition:

1 body || 2 cable gland plate || 2 door with lock || 1 mounting plate

Rohs Exemption Information:

Yes

Color:

enclosure Gray RAL 7035)

Door Type:

Solid

Enclosure Nominal Width:

1000 mm

Number Of Doors:

front face 2

Ik Degree Of Protection:

IK10 IEC 62262

Mounting Plate Description:

plain

Door Opening Side:

reversible 120 °)

Device Application:

multi-purpose

Ip Degree Of Protection:

IP55 IEC 60529

Environmental Disclosure:

ENVPEP100104EN

Mercury Free:

Yes

Accessibility For Operation:

front

Enclosure Nominal Depth:

300 mm

Type Of Gland Plate:

standard

Material:

enclosure steel || mounting plate galvanised steel

Net Weight:

64 kg

Lock Type:

3 points lock, 3 mm double-bar

Brochure:

View

Datasheet:

View
