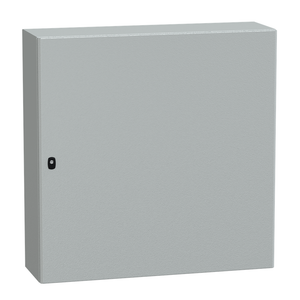

Schneider Electric NSYS3D101030P S3D H1000Xw1000Xd300+Chassis

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D101030P S3D H1000Xw1000Xd300+Chassis

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D101030P

UPC:

3606480160301

MPN:

Condition:

New

Enclosure Nominal Height:

1000 mm

Lock Type:

3 points lock, 3 mm double-bar

Circularity Profile:

N/A

Enclosure Nominal Depth:

300 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Material:

enclosure steel || mounting plate galvanised steel

Ip Degree Of Protection:

IP66 IEC 60529

Range:

Spacial

Color:

enclosure Gray RAL 7035)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Accessibility For Operation:

front

Door Opening Side:

reversible 120 °)

Type Of Gland Plate:

standard

Product Name:

Spacial S3D

Variant Particularity:

gutter-shaped front rail double sheet thickness || single piece body

Enclosure Nominal Width:

1000 mm

Installation Accessory Type:

wall-mounting

Nema Degree Of Protection:

NEMA 4X/13

Number Of Doors:

front face 1

Rohs Exemption Information:

Yes

Environmental Disclosure:

ENVPEP100104EN

Device Application:

multi-purpose

Removable Parts:

door by hinges || cable gland plate by screws || mounting plate by fixing element

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Mercury Free:

Yes

Surface Finish:

enclosure epoxy-polyester powder

Ik Degree Of Protection:

IK10 IEC 62262

Sustainable Offer Status:

Green Premium product

Mounting Plate Description:

plain

Warranty:

18 months

Product Certifications:

DNV || UL || BV || GL || cUL || LR

Device Composition:

1 body || 2 cable gland plate || 1 mounting plate || 1 door with lock

Standards:

IEC 62208

Net Weight:

63 kg

Product Or Component Type:

compact enclosure

Door Type:

Solid

Brochure:

View

Datasheet:

View
