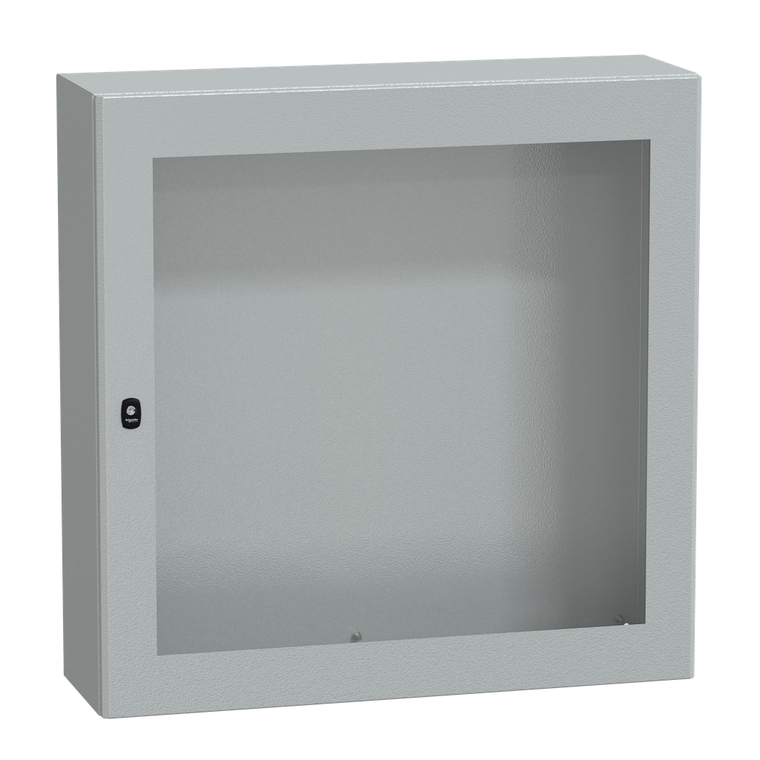

Schneider Electric NSYS3D101030T S3D Glazed Door.H1000Xw1000Xd300

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D101030T S3D Glazed Door.H1000Xw1000Xd300

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D101030T

UPC:

3.60648E+12

MPN:

Condition:

New

Mounting Plate Description:

without mounting plate

Standards:

IEC 62208

Door Opening Side:

reversible 120 °)

Device Composition:

1 body || 2 cable gland plate || 1 door || 1 lock

Mercury Free:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Variant Particularity:

gutter-shaped front rail double sheet thickness || single piece body

Product Certifications:

UL || GL || LR || cUL || BV || DNV

Product Name:

Spacial S3D

Enclosure Nominal Height:

1000 mm

Net Weight:

43 kg

Installation Accessory Type:

wall-mounting

Door Type:

Glass

Environmental Disclosure:

ENVPEP100104EN

Number Of Doors:

front face 1

Lock Type:

3 points lock, 3 mm double-bar

Ik Degree Of Protection:

IK08 IEC 62262

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Ip Degree Of Protection:

IP66 IEC 60529

Device Application:

multi-purpose

Surface Finish:

epoxy-polyester powder

Warranty:

18 months

Accessibility For Operation:

front

Circularity Profile:

N/A

Electromagnetic Compatibility:

electromagnetic field immunity test

Nema Degree Of Protection:

NEMA 4X/13

Enclosure Nominal Width:

1000 mm

Product Or Component Type:

compact enclosure

Rohs Exemption Information:

Yes

Material:

body steel || door steel and security glass

Removable Parts:

door by hinges || cable gland plate by screws

Range:

Spacial

Color:

Gray RAL 7035)

Type Of Gland Plate:

standard

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Depth:

300 mm

Brochure:

View

Datasheet:

View
