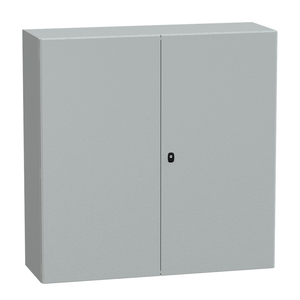

Schneider Electric NSYS3D101240DP S3D 2D H1000Xw1200Xd400+Chassis

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D101240DP S3D 2D H1000Xw1200Xd400+Chassis

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D101240DP

UPC:

3.61E+12

MPN:

Condition:

New

Installation Accessory Type:

wall-mounting

Ik Degree Of Protection:

IK10 IEC 62262

Device Application:

multi-purpose

Material:

enclosure steel || mounting plate galvanised steel

Enclosure Nominal Height:

1000 mm

Mounting Plate Description:

plain

Enclosure Nominal Width:

1200 mm

Type Of Gland Plate:

standard

Product Or Component Type:

compact enclosure

Rohs Exemption Information:

Yes

Standards:

IEC 62208

Lock Type:

3 points lock, 3 mm double-bar

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ip Degree Of Protection:

IP55 IEC 60529

Variant Particularity:

gutter-shaped front rail double sheet thickness || single piece body

Door Type:

Solid

Product Name:

Spacial S3D

Enclosure Nominal Depth:

400 mm

Sustainable Offer Status:

Green Premium product

Surface Finish:

enclosure epoxy-polyester powder

Number Of Doors:

front face 2

Door Opening Side:

reversible 120 °)

Accessibility For Operation:

front

Removable Parts:

door by hinges || cable gland plate by screws || mounting plate by fixing element

Range:

Spacial

Device Composition:

1 body || 2 cable gland plate || 2 door with lock || 1 mounting plate

Product Certifications:

UL || GL || LR || cUL || BV || DNV

Environmental Disclosure:

ENVPEP100104EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

N/A

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Warranty:

18 months

Net Weight:

90 kg

Color:

enclosure Gray RAL 7035)

Brochure:

View

Datasheet:

View
