Schneider Electric NSYS3D10625P S3D H1000Xw600Xd250+Chassis

(No reviews yet) Write a Review
SKU:
NSYS3D10625P
UPC:
3606480160233
Condition:
New
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Removable Parts:
door by hinges || cable gland plate by screws || mounting plate by fixing element
Device Application:
multi-purpose
Product Name:
Spacial S3D
Color:
enclosure Gray RAL 7035)
Variant Particularity:
gutter-shaped front rail double sheet thickness || single piece body
Mounting Plate Description:
plain
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Enclosure Nominal Width:
600 mm
Mercury Free:
Yes
Enclosure Nominal Depth:
250 mm
Number Of Doors:
front face 1
Product Or Component Type:
compact enclosure
Enclosure Nominal Height:
1000 mm
Device Composition:
1 body || 1 mounting plate || 1 door with lock || 1 cable gland plate
Rohs Exemption Information:
Yes
Surface Finish:
enclosure epoxy-polyester powder
Range:
Spacial
Ip Degree Of Protection:
IP66 IEC 60529
Lock Type:
3 points lock, 3 mm double-bar
Ik Degree Of Protection:
IK10 IEC 62262
Accessibility For Operation:
front
Installation Accessory Type:
wall-mounting
Circularity Profile:
N/A
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP100104EN
Net Weight:
38 kg
Door Opening Side:
reversible 120 °)
Nema Degree Of Protection:
NEMA 4X/13
Warranty:
18 months
Product Certifications:
UL || BV || DNV || GL || LR || cUL
Material:
enclosure steel || mounting plate galvanised steel
Door Type:
Solid
Type Of Gland Plate:
standard
Standards:
IEC 62208
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Brochure:
View
Datasheet:
View
$313.32

Description

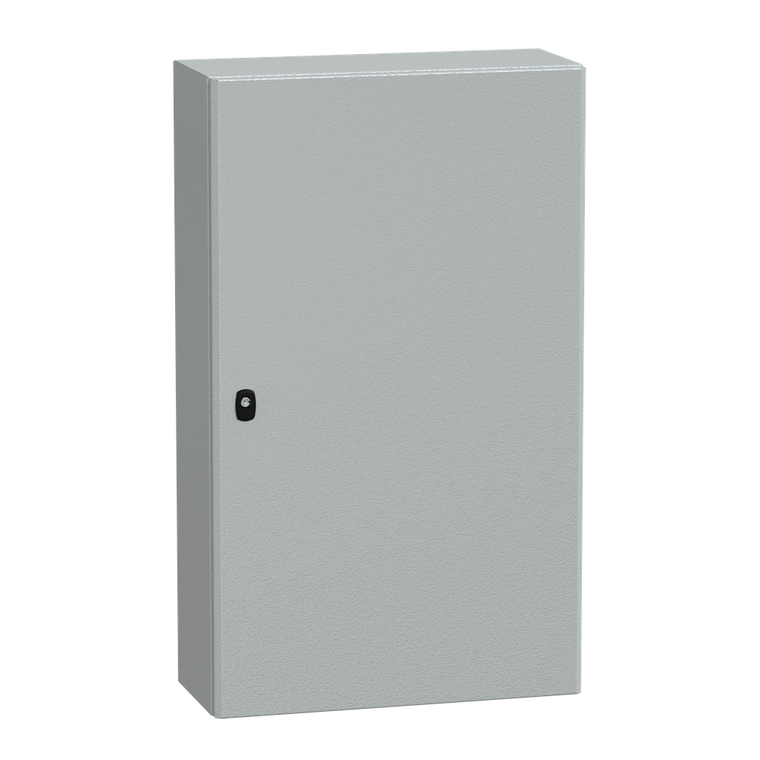

Spacial S3D wall mounted steel enclosure with plain door. 1000 x 600 x 250 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.
