Schneider Electric

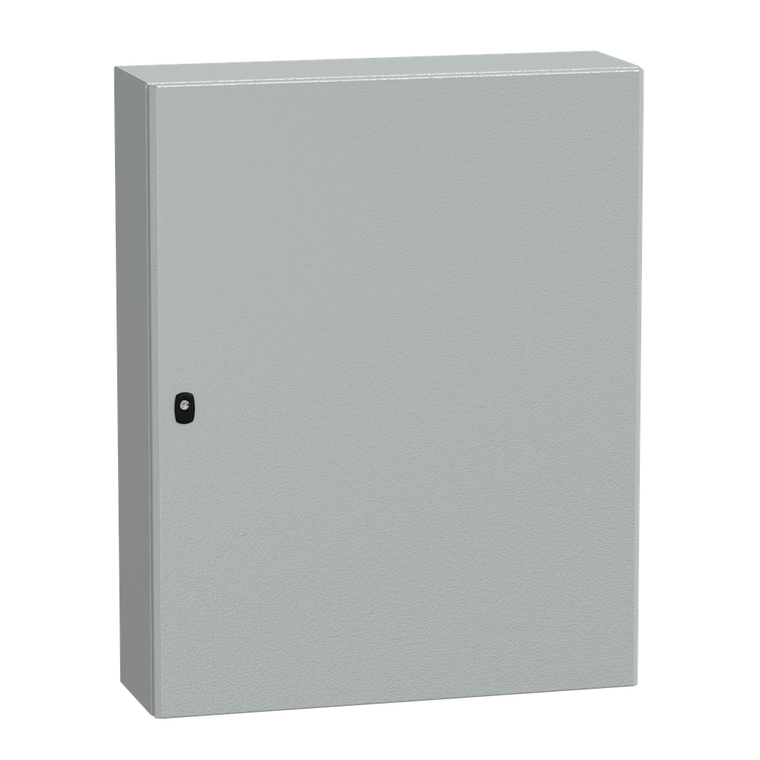

Schneider Electric NSYS3D10825 S3D H1000Xw800Xd250 One Plain Do.

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYS3D10825 S3D H1000Xw800Xd250 One Plain Do.

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D10825

UPC:

3606480160158

MPN:

Condition:

New

Device Composition:

1 body || 2 cable gland plate || 1 door || 1 lock

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Name:

Spacial S3D

Removable Parts:

door by hinges || cable gland plate by screws

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Height:

1000 mm

Warranty:

18 months

Material:

steel

Product Certifications:

GL || BV || cUL || DNV || UL || LR

Ip Degree Of Protection:

IP66 IEC 60529

Surface Finish:

epoxy-polyester powder

Installation Accessory Type:

wall-mounting

Net Weight:

35 kg

Enclosure Nominal Depth:

250 mm

Variant Particularity:

gutter-shaped front rail double sheet thickness || single piece body

Product Or Component Type:

compact enclosure

Type Of Gland Plate:

standard

Standards:

IEC 62208

Number Of Doors:

front face 1

Ik Degree Of Protection:

IK10 IEC 62262

Range:

Spacial

Sustainable Offer Status:

Green Premium product

Rohs Exemption Information:

Yes

Door Type:

Solid

Mercury Free:

Yes

Color:

Gray RAL 7035)

Enclosure Nominal Width:

800 mm

Nema Degree Of Protection:

NEMA 4X/13

Door Opening Side:

reversible 120 °)

Accessibility For Operation:

front

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Lock Type:

3 points lock, 3 mm double-bar

Device Application:

multi-purpose

Environmental Disclosure:

ENVPEP100104EN

Circularity Profile:

N/A

Mounting Plate Description:

without mounting plate

Brochure:

View

Datasheet:

View
