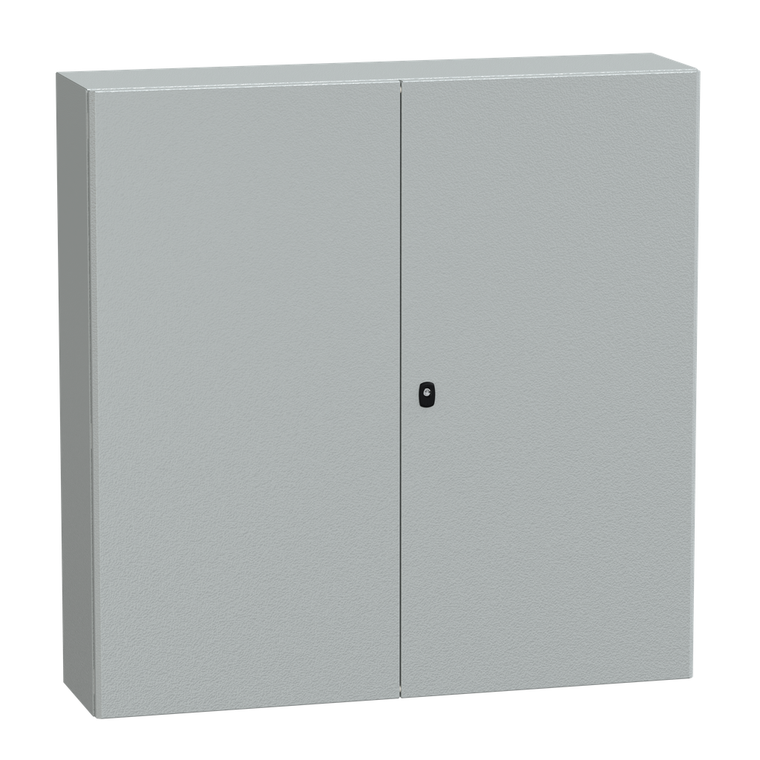

Schneider Electric NSYS3D121230DP S3D 2D H1200Xw1200Xd300+Chassis

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D121230DP S3D 2D H1200Xw1200Xd300+Chassis

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D121230DP

UPC:

3.60648E+12

MPN:

Condition:

New

Removable Parts:

door by hinges || cable gland plate by screws || mounting plate by fixing element

Accessibility For Operation:

front

Installation Accessory Type:

wall-mounting

Device Application:

multi-purpose

Enclosure Nominal Width:

1200 mm

Type Of Gland Plate:

standard

Range:

Spacial

Mercury Free:

Yes

Ip Degree Of Protection:

IP55 IEC 60529

Mounting Plate Description:

plain

Net Weight:

86 kg

Sustainable Offer Status:

Green Premium product

Device Composition:

1 body || 2 cable gland plate || 2 door with lock || 1 mounting plate

Product Or Component Type:

compact enclosure

Rohs Exemption Information:

Yes

Door Type:

Solid

Warranty:

18 months

Door Opening Side:

reversible 120 °)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ik Degree Of Protection:

IK10 IEC 62262

Color:

enclosure Gray RAL 7035)

Lock Type:

3 points lock, 3 mm double-bar

Material:

enclosure steel || mounting plate galvanised steel

Variant Particularity:

gutter-shaped front rail double sheet thickness || single piece body

Standards:

IEC 62208

Surface Finish:

enclosure epoxy-polyester powder

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Circularity Profile:

N/A

Enclosure Nominal Depth:

300 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Number Of Doors:

front face 2

Environmental Disclosure:

ENVPEP100104EN

Product Name:

Spacial S3D

Enclosure Nominal Height:

1200 mm

Product Certifications:

UL || cUL || GL || BV || DNV || LR

Brochure:

View

Datasheet:

View
