Schneider Electric

Schneider Electric NSYS3D141030D S3D H1400Xw1000Xd300 2 Doors

(No reviews yet) Write a Review
SKU:
NSYS3D141030D
UPC:
3.60648E+12
Condition:
New
Material:
steel
Enclosure Nominal Height:
1400 mm
Enclosure Nominal Depth:
300 mm
Net Weight:
84 kg
Variant Particularity:
gutter-shaped front rail double sheet thickness || single piece body
Product Or Component Type:
compact enclosure
Accessibility For Operation:
front
Environmental Disclosure:
ENVPEP100104EN
Warranty:
18 months
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Enclosure Nominal Width:
1000 mm
Color:
Gray RAL 7035)
Surface Finish:
epoxy-polyester powder
Electromagnetic Compatibility:
electromagnetic field immunity test
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Door Type:
Solid
Number Of Doors:
front face 2
Installation Accessory Type:
wall-mounting
Device Application:
multi-purpose
Circularity Profile:
N/A
Lock Type:
3 points lock, 3 mm double-bar
Device Composition:
1 body || 2 cable gland plate || 1 lock || 2 door
Mounting Plate Description:
without mounting plate
Door Opening Side:
reversible 120 °)
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Ip Degree Of Protection:
IP55 IEC 60529
Ik Degree Of Protection:
IK10 IEC 62262
Range:
Spacial
Product Certifications:
GL || DNV || BV || LR || UL || cUL
Type Of Gland Plate:
standard
Removable Parts:
door by hinges || cable gland plate by screws
Product Name:
Spacial S3D
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Standards:
IEC 62208
Brochure:
View
Datasheet:
View
$1,634.80

Description

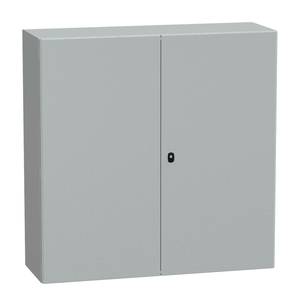

Spacial S3D wall mounted steel enclosure with 2 plain doors. 1400 x 1000 x 300 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 55, IK10, Grey RAL 7035. 2 cable gland plates included, standard. Extensive range of accessories. Packaging is reusable after assembly.
