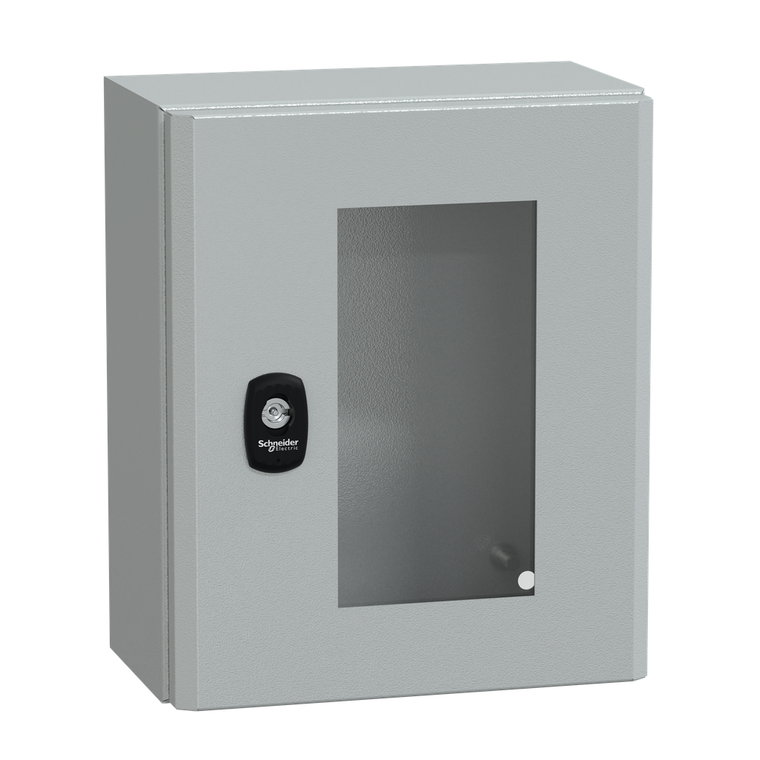

Schneider Electric NSYS3D32515T S3D Glazed Door.H300Xw250Xd150

(No reviews yet) Write a Review
SKU:
NSYS3D32515T
UPC:
3606480159763
Condition:
New
Lock Type:
3 mm double-bar lock
Door Opening Side:
reversible 120 °)
Range:
Spacial
Accessibility For Operation:
front
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
N/A
Color:
Gray RAL 7035)
Electromagnetic Compatibility:
electromagnetic field immunity test
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP100104EN
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Surface Finish:
epoxy-polyester powder
Ik Degree Of Protection:
IK08 IEC 62262
Mounting Plate Description:
without mounting plate
Enclosure Nominal Width:
250 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Enclosure Nominal Depth:
150 mm
Product Or Component Type:
compact enclosure
Device Composition:
1 body || 1 door || 1 lock || 1 cable gland plate
Product Certifications:
cUL || GL || BV || LR || UL || DNV
Removable Parts:
door by hinges || cable gland plate by screws
Variant Particularity:
single piece body || gutter-shaped front rail double sheet thickness
Nema Degree Of Protection:
NEMA 4X/13
Door Type:
Glass
Warranty:
18 months
Material:
body steel || door steel and security glass
Product Name:
Spacial S3D
Number Of Doors:
front face 1
Net Weight:
3.6 kg
Ip Degree Of Protection:
IP66 IEC 60529
Rohs Exemption Information:
Yes
Enclosure Nominal Height:
300 mm
Device Application:
multi-purpose
Installation Accessory Type:
wall-mounting
Standards:
IEC 62208
Type Of Gland Plate:
standard
Sustainable Offer Status:
Green Premium product
Brochure:
View
Datasheet:
View
$120.22

Description

Spacial S3D wall mounted steel enclosure with glazed door. 300 x 250 x 150 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK08, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.
