Schneider Electric

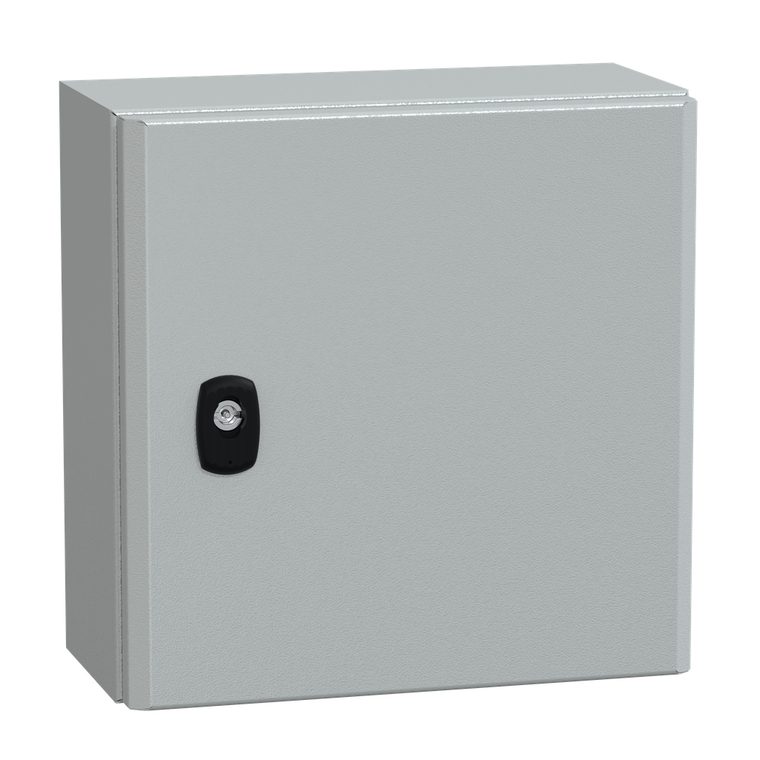

Schneider Electric NSYS3D3315P S3D H300Xw300Xd150+Plain Chassis

(No reviews yet) Write a Review
SKU:
NSYS3D3315P
UPC:
3606480159749
Condition:
New
Rohs Exemption Information:
Yes
Range:
Spacial
Surface Finish:
enclosure epoxy-polyester powder
Door Type:
Solid
Color:
enclosure Gray RAL 7035)
Number Of Doors:
front face 1
Ik Degree Of Protection:
IK10 IEC 62262
Lock Type:
3 mm double-bar lock
Warranty:
18 months
Ip Degree Of Protection:
IP66 IEC 60529
Mounting Plate Description:
plain
Enclosure Nominal Width:
300 mm
Environmental Disclosure:
ENVPEP100104EN
Variant Particularity:
single piece body || gutter-shaped front rail double sheet thickness
Enclosure Nominal Height:
300 mm
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Or Component Type:
compact enclosure
Product Name:
Spacial S3D
Accessibility For Operation:
front
Standards:
IEC 62208
Nema Degree Of Protection:
NEMA 4X/13
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Type Of Gland Plate:
standard
Material:
enclosure steel || mounting plate galvanised steel
Removable Parts:
door by hinges || cable gland plate by screws || mounting plate by fixing element
Door Opening Side:
reversible 120 °)
Product Certifications:
cUL || UL || BV || LR || GL || DNV
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Installation Accessory Type:
wall-mounting
Circularity Profile:
N/A
Enclosure Nominal Depth:
150 mm
Device Application:
multi-purpose
Device Composition:
1 body || 1 mounting plate || 1 door with lock || 1 cable gland plate
Net Weight:
4.84 kg
Mercury Free:
Yes
Brochure:
View
Datasheet:
View
$84.47

Description

Spacial S3D wall mounted steel enclosure with plain door. 300 x 300 x 150 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.
