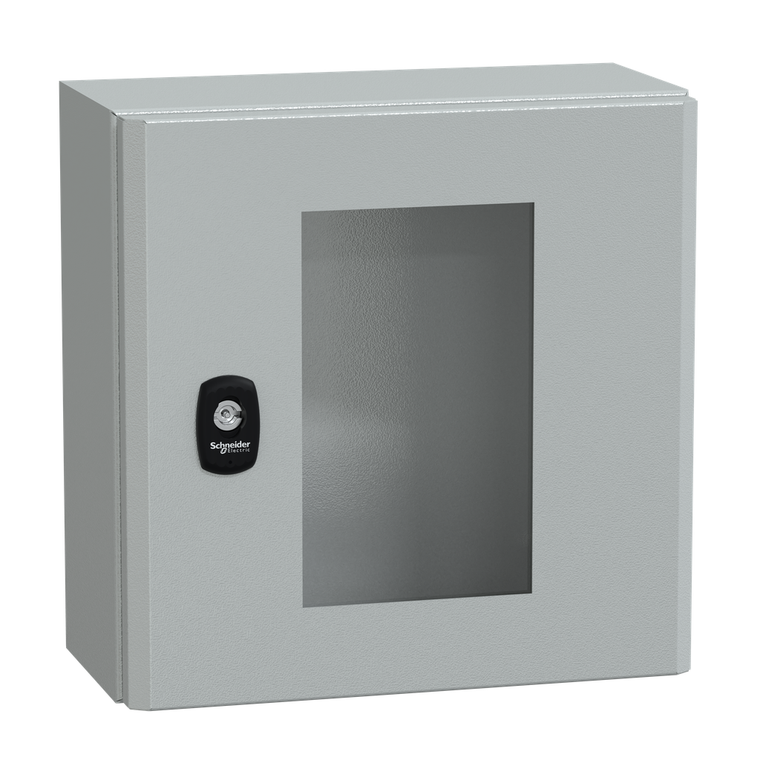

Schneider Electric NSYS3D3315T S3D Glazed Door.H300Xw300Xd150

(No reviews yet) Write a Review
SKU:
NSYS3D3315T
UPC:
3606480159732
Condition:
New
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
Ip Degree Of Protection:
IP66 IEC 60529
Removable Parts:
door by hinges || cable gland plate by screws
Product Certifications:
DNV || UL || BV || cUL || LR || GL
Surface Finish:
epoxy-polyester powder
Material:
body steel || door steel and security glass
Variant Particularity:
gutter-shaped front rail double sheet thickness || single piece body
Type Of Gland Plate:
standard
Door Type:
Glass
Standards:
IEC 62208
Circularity Profile:
N/A
Accessibility For Operation:
front
Device Application:
multi-purpose
Lock Type:
3 mm double-bar lock
Door Opening Side:
reversible 120 °)
Environmental Disclosure:
ENVPEP100104EN
Net Weight:
4.04 kg
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
compact enclosure
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Ik Degree Of Protection:
IK08 IEC 62262
Warranty:
18 months
Installation Accessory Type:
wall-mounting
Number Of Doors:
front face 1
Electromagnetic Compatibility:
electromagnetic field immunity test
Device Composition:
1 body || 1 door || 1 lock || 1 cable gland plate
Rohs Exemption Information:
Yes
Nema Degree Of Protection:
NEMA 4X/13
Product Name:
Spacial S3D
Enclosure Nominal Width:
300 mm
Enclosure Nominal Depth:
150 mm
Mounting Plate Description:
without mounting plate
Range:
Spacial
Enclosure Nominal Height:
300 mm
Color:
Gray RAL 7035)
Mercury Free:
Yes
Brochure:
View
Datasheet:
View
$110.90

Description

Spacial S3D wall mounted steel enclosure with glazed door. 300 x 300 x 150 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK08, Grey RAL 7035. 1 cable gland plate included, standard. Extensive range of accessories. Packaging is reusable after assembly.
