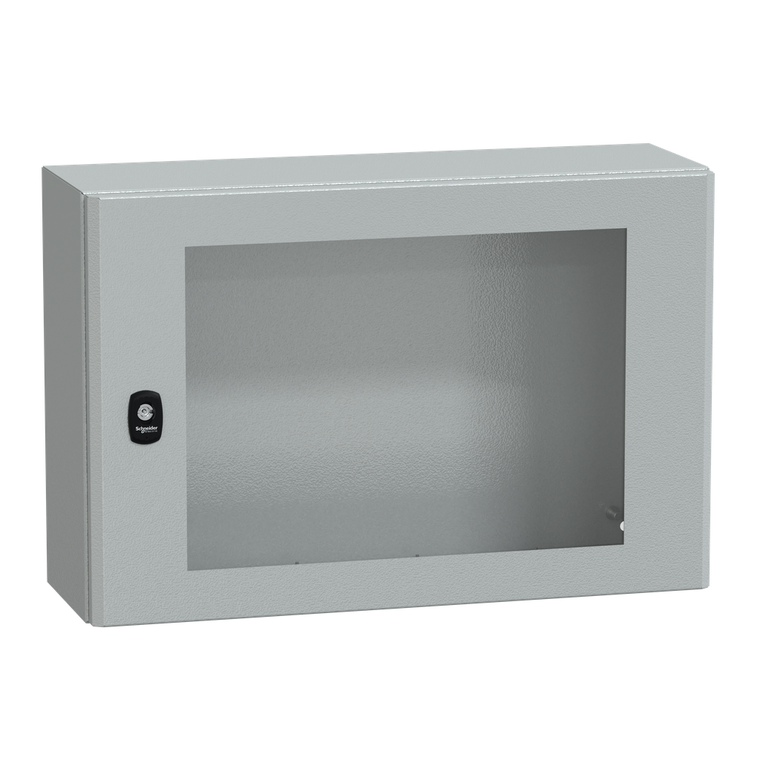

Schneider Electric NSYS3D4620T S3D Glazed Door.H400Xw600Xd200

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D4620T S3D Glazed Door.H400Xw600Xd200

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D4620T

UPC:

3606480159527

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Name:

Spacial S3D

Door Type:

Glass

Mounting Plate Description:

without mounting plate

Material:

body steel || door steel and security glass

Device Composition:

1 body || 1 door || 1 lock || 1 cable gland plate

Product Or Component Type:

compact enclosure

Nema Degree Of Protection:

NEMA 4X/13

Installation Accessory Type:

wall-mounting

Ik Degree Of Protection:

IK08 IEC 62262

Color:

Gray RAL 7035)

Device Application:

multi-purpose

Sustainable Offer Status:

Green Premium product

Door Opening Side:

reversible 120 °)

Lock Type:

3 points lock, 3 mm double-bar

Warranty:

18 months

Surface Finish:

epoxy-polyester powder

Enclosure Nominal Depth:

200 mm

Circularity Profile:

N/A

Range:

Spacial

Enclosure Nominal Height:

400 mm

Rohs Exemption Information:

Yes

Mercury Free:

Yes

Removable Parts:

door by hinges || cable gland plate by screws

Ip Degree Of Protection:

IP66 IEC 60529

Standards:

IEC 62208

Product Certifications:

cUL || BV || GL || DNV || LR || UL

Enclosure Nominal Width:

600 mm

Accessibility For Operation:

front

Type Of Gland Plate:

standard

Electromagnetic Compatibility:

electromagnetic field immunity test

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

10.5 kg

Environmental Disclosure:

ENVPEP100104EN

Number Of Doors:

front face 1

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

Brochure:

View

Catalog:

View

Datasheet:

View
