Schneider Electric

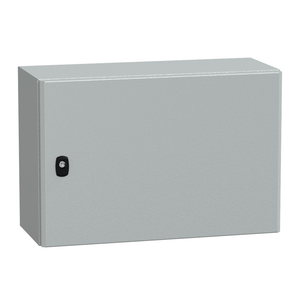

Schneider Electric NSYS3D4625 S3D H400Xw600Xd250 One Plain Door

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYS3D4625 S3D H400Xw600Xd250 One Plain Door

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D4625

UPC:

3606480159510

MPN:

Condition:

New

Net Weight:

12 kg

Product Certifications:

BV || LR || DNV || cUL || GL || UL

Ik Degree Of Protection:

IK10 IEC 62262

Product Name:

Spacial S3D

Product Or Component Type:

compact enclosure

Mercury Free:

Yes

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

Door Type:

Solid

Door Opening Side:

reversible 120 °)

Enclosure Nominal Height:

400 mm

Environmental Disclosure:

ENVPEP100104EN

Range:

Spacial

Enclosure Nominal Width:

600 mm

Removable Parts:

door by hinges || cable gland plate by screws

Rohs Exemption Information:

Yes

Type Of Gland Plate:

standard

Warranty:

18 months

Accessibility For Operation:

front

Ip Degree Of Protection:

IP66 IEC 60529

Color:

Gray RAL 7035)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mounting Plate Description:

without mounting plate

Material:

steel

Lock Type:

3 points lock, 3 mm double-bar

Circularity Profile:

N/A

Enclosure Nominal Depth:

250 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Surface Finish:

epoxy-polyester powder

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Device Application:

multi-purpose

Device Composition:

1 body || 1 door || 1 lock || 1 cable gland plate

Standards:

IEC 62208

Installation Accessory Type:

wall-mounting

Number Of Doors:

front face 1

Nema Degree Of Protection:

NEMA 4X/13

Brochure:

View

Datasheet:

View
