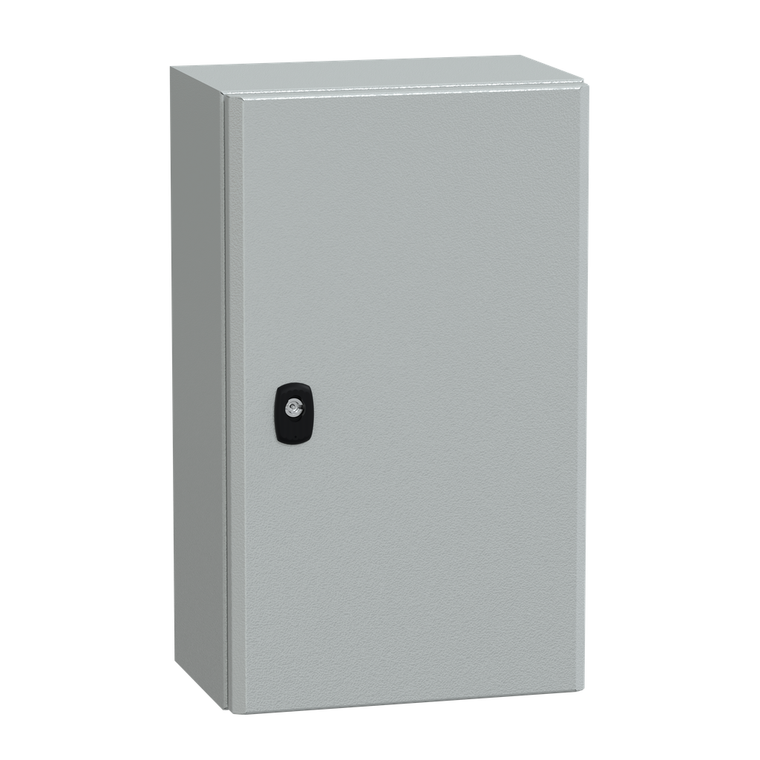

Schneider Electric NSYS3D5320P S3D H500Xw300Xd200+Plain Chassis

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D5320P S3D H500Xw300Xd200+Plain Chassis

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D5320P

UPC:

3.60648E+12

MPN:

Condition:

New

Net Weight:

8.662 kg

Lock Type:

3 mm double-bar lock

Mounting Plate Description:

plain

Rohs Exemption Information:

Yes

Enclosure Nominal Height:

500 mm

Variant Particularity:

gutter-shaped front rail double sheet thickness || single piece body

Enclosure Nominal Depth:

200 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

N/A

Surface Finish:

enclosure epoxy-polyester powder

Product Certifications:

BV || LR || UL || GL || cUL || DNV

Range:

Spacial

Enclosure Nominal Width:

300 mm

Color:

enclosure Gray RAL 7035)

Number Of Doors:

front face 1

Door Type:

Solid

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Door Opening Side:

reversible 120 °)

Product Or Component Type:

compact enclosure

Type Of Gland Plate:

standard

Device Application:

multi-purpose

Warranty:

18 months

Ik Degree Of Protection:

IK10 IEC 62262

Product Name:

Spacial S3D

Accessibility For Operation:

front

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Removable Parts:

door by hinges || cable gland plate by screws || mounting plate by fixing element

Standards:

IEC 62208

Material:

enclosure steel || mounting plate galvanised steel

Installation Accessory Type:

wall-mounting

Environmental Disclosure:

ENVPEP100104EN

Nema Degree Of Protection:

NEMA 4X/13

Ip Degree Of Protection:

IP66 IEC 60529

Device Composition:

1 body || 1 mounting plate || 1 door with lock || 1 cable gland plate

Mercury Free:

Yes

Sustainable Offer Status:

Green Premium product
