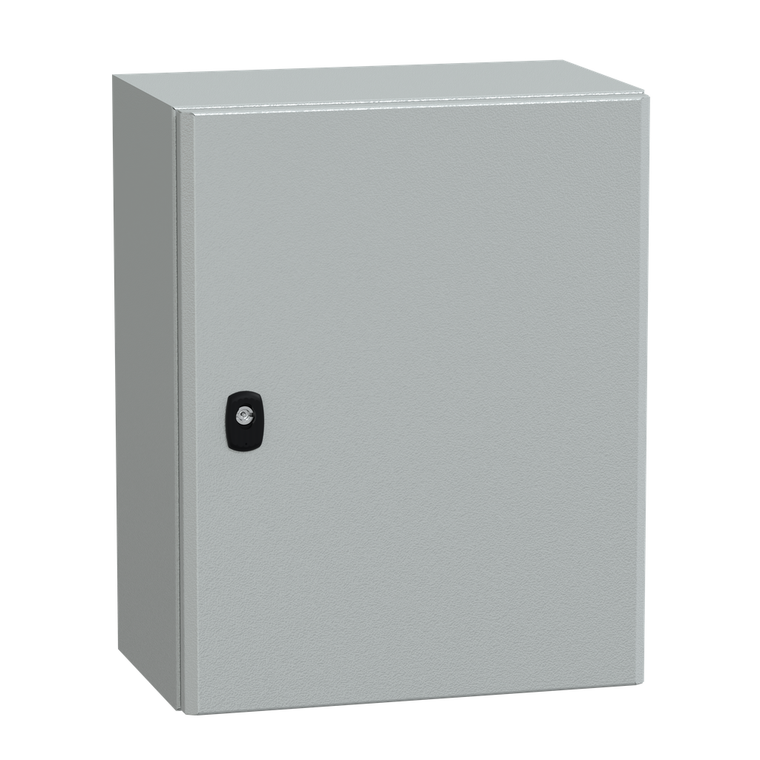

Schneider Electric NSYS3D5425P S3D H500Xw400Xd250+Plain Chassis

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D5425P S3D H500Xw400Xd250+Plain Chassis

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D5425P

UPC:

3.60648E+12

MPN:

Condition:

New

Removable Parts:

door by hinges || cable gland plate by screws || mounting plate by fixing element

Color:

enclosure Gray RAL 7035)

Door Opening Side:

reversible 120 °)

Sustainable Offer Status:

Green Premium product

Number Of Doors:

front face 1

Ik Degree Of Protection:

IK10 IEC 62262

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Nominal Depth:

250 mm

Enclosure Nominal Width:

400 mm

Mercury Free:

Yes

Enclosure Nominal Height:

500 mm

Device Application:

multi-purpose

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Standards:

IEC 62208

Installation Accessory Type:

wall-mounting

Environmental Disclosure:

ENVPEP100104EN

Ip Degree Of Protection:

IP66 IEC 60529

Warranty:

18 months

Net Weight:

11.385 kg

Material:

enclosure steel || mounting plate galvanised steel

Surface Finish:

enclosure epoxy-polyester powder

Nema Degree Of Protection:

NEMA 4X/13

Lock Type:

3 mm double-bar lock

Range:

Spacial

Product Name:

Spacial S3D

Type Of Gland Plate:

standard

Device Composition:

1 body || 1 mounting plate || 1 door with lock || 1 cable gland plate

Door Type:

Solid

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

Product Certifications:

BV || GL || UL || LR || DNV || cUL

Mounting Plate Description:

plain

Product Or Component Type:

compact enclosure

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Circularity Profile:

N/A

Accessibility For Operation:

front

Brochure:

View

Datasheet:

View
