Schneider Electric NSYS3D6420P S3D H600Xw400Xd200+Plain Chassis
Schneider Electric
$155.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

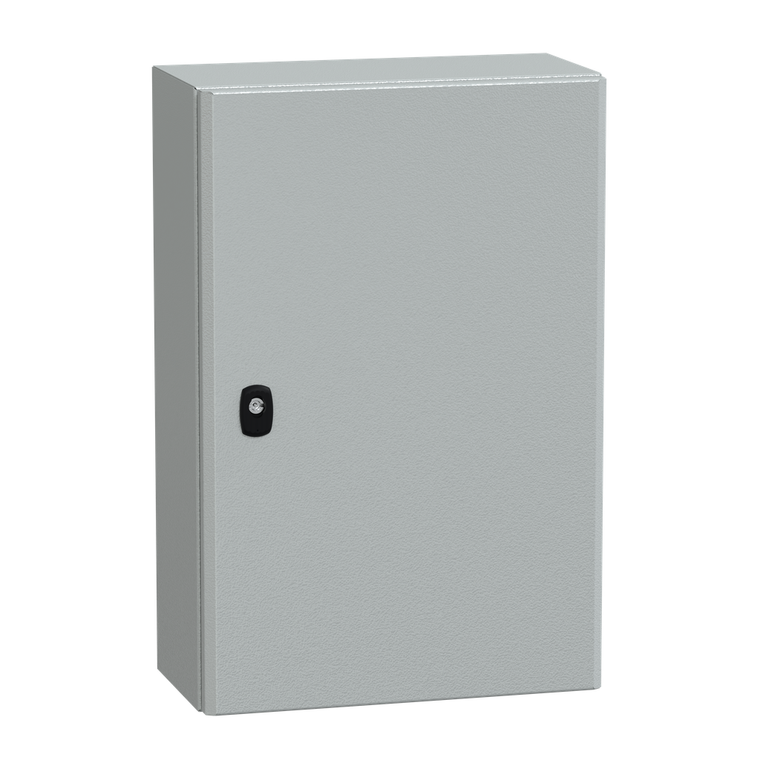

Schneider Electric NSYS3D6420P S3D H600Xw400Xd200+Plain Chassis
Spacial S3D wall mounted steel enclosure with plain door. 600 x 400 x 200 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.
- Ip Degree Of Protection:
- IP66 IEC 60529
- Surface Finish:
- enclosure epoxy-polyester powder
- Enclosure Nominal Width:
- 400 mm
- Type Of Gland Plate:
- standard
- Product Name:
- Spacial S3D
- Environmental Disclosure:
- ENVPEP100104EN
- Accessibility For Operation:
- front
- Color:
- enclosure Gray RAL 7035)
- Enclosure Nominal Height:
- 600 mm
- Net Weight:
- 13 kg
- Installation Accessory Type:
- wall-mounting
- Circularity Profile:
- N/A
- Device Application:
- multi-purpose
- Ik Degree Of Protection:
- IK10 IEC 62262
- Door Opening Side:
- reversible 120 °)
- Number Of Doors:
- front face 1
- Removable Parts:
- door by hinges || cable gland plate by screws || mounting plate by fixing element
- Enclosure Nominal Depth:
- 200 mm
- Sustainable Offer Status:
- Green Premium product
- Product Or Component Type:
- compact enclosure
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Standards:
- IEC 62208
- Range:
- Spacial
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Product Certifications:
- LR || GL || UL || cUL || DNV || BV
- Mercury Free:
- Yes
- Variant Particularity:
- single piece body || gutter-shaped front rail double sheet thickness
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Material:
- enclosure steel || mounting plate galvanised steel
- Door Type:
- Solid
- Nema Degree Of Protection:
- NEMA 4X/13
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Composition:
- 1 body || 1 mounting plate || 1 door with lock || 1 cable gland plate
- Mounting Plate Description:
- plain
- Lock Type:
- 3 points lock, 3 mm double-bar
- Brochure:
- View
- Datasheet:
- View
