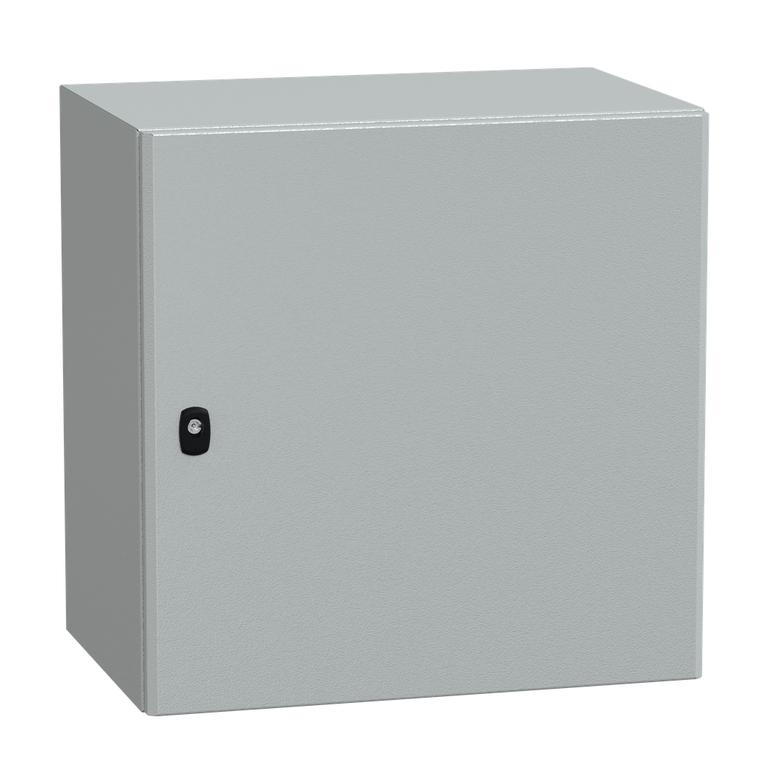

Schneider Electric NSYS3D6640 S3D H600Xw600Xd400 One Plain Door

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D6640 S3D H600Xw600Xd400 One Plain Door

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D6640

UPC:

3.60648E+12

MPN:

Condition:

New

Circularity Profile:

N/A

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Environmental Disclosure:

ENVPEP100104EN

Door Opening Side:

reversible 120 °)

Ik Degree Of Protection:

IK10 IEC 62262

Installation Accessory Type:

wall-mounting

Enclosure Nominal Width:

600 mm

Lock Type:

3 points lock, 3 mm double-bar

Rohs Exemption Information:

Yes

Range:

Spacial

Product Certifications:

LR || DNV || BV || cUL || GL || UL

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mounting Plate Description:

without mounting plate

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Door Type:

Solid

Color:

Gray RAL 7035)

Enclosure Nominal Height:

600 mm

Surface Finish:

epoxy-polyester powder

Product Name:

Spacial S3D

Net Weight:

19 kg

Number Of Doors:

front face 1

Device Application:

multi-purpose

Nema Degree Of Protection:

NEMA 4X/13

Device Composition:

1 body || 1 door || 1 lock || 1 cable gland plate

Accessibility For Operation:

front

Type Of Gland Plate:

standard

Mercury Free:

Yes

Material:

steel

Warranty:

18 months

Removable Parts:

door by hinges || cable gland plate by screws

Product Or Component Type:

compact enclosure

Standards:

IEC 62208

Enclosure Nominal Depth:

400 mm

Ip Degree Of Protection:

IP66 IEC 60529

Brochure:

View

Datasheet:

View
