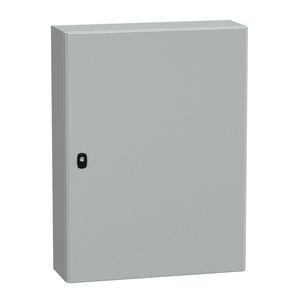

Schneider Electric NSYS3D8620 S3D H800Xw600Xd200 One Plain Door

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D8620 S3D H800Xw600Xd200 One Plain Door

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D8620

UPC:

3.60648E+12

MPN:

Condition:

New

Type Of Gland Plate:

standard

Environmental Disclosure:

ENVPEP100104EN

Mercury Free:

Yes

Variant Particularity:

gutter-shaped front rail double sheet thickness || single piece body

Lock Type:

3 points lock, 3 mm double-bar

Accessibility For Operation:

front

Surface Finish:

epoxy-polyester powder

Ip Degree Of Protection:

IP66 IEC 60529

Product Name:

Spacial S3D

Enclosure Nominal Height:

800 mm

Door Opening Side:

reversible 120 °)

Material:

steel

Product Certifications:

UL || DNV || LR || GL || BV || cUL

Color:

Gray RAL 7035)

Product Or Component Type:

compact enclosure

Nema Degree Of Protection:

NEMA 4X/13

Enclosure Nominal Depth:

200 mm

Net Weight:

21 kg

Ik Degree Of Protection:

IK10 IEC 62262

Standards:

IEC 62208

Range:

Spacial

Rohs Exemption Information:

Yes

Installation Accessory Type:

wall-mounting

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mounting Plate Description:

without mounting plate

Device Composition:

1 body || 1 door || 1 lock || 1 cable gland plate

Sustainable Offer Status:

Green Premium product

Number Of Doors:

front face 1

Device Application:

multi-purpose

Circularity Profile:

N/A

Door Type:

Solid

Warranty:

18 months

Enclosure Nominal Width:

600 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Removable Parts:

door by hinges || cable gland plate by screws

Brochure:

View

Datasheet:

View
