Schneider Electric

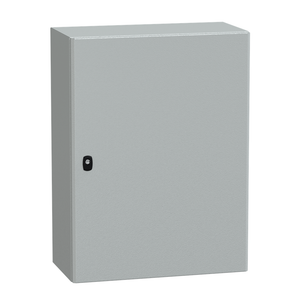

Schneider Electric NSYS3D8630 S3D H800Xw600Xd300 One Plain Door

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYS3D8630 S3D H800Xw600Xd300 One Plain Door

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D8630

UPC:

3606480158940

MPN:

Condition:

New

Ik Degree Of Protection:

IK10 IEC 62262

Mounting Plate Description:

without mounting plate

Sustainable Offer Status:

Green Premium product

Mercury Free:

Yes

Door Opening Side:

reversible 120 °)

Net Weight:

25 kg

Device Application:

multi-purpose

Surface Finish:

epoxy-polyester powder

Circularity Profile:

N/A

Range:

Spacial

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Removable Parts:

door by hinges || cable gland plate by screws

Lock Type:

3 points lock, 3 mm double-bar

Product Name:

Spacial S3D

Accessibility For Operation:

front

Warranty:

18 months

Environmental Disclosure:

ENVPEP100104EN

Number Of Doors:

front face 1

Door Type:

Solid

Rohs Exemption Information:

Yes

Standards:

IEC 62208

Nema Degree Of Protection:

NEMA 4X/13

Enclosure Nominal Width:

600 mm

Ip Degree Of Protection:

IP66 IEC 60529

Device Composition:

1 body || 1 door || 1 lock || 1 cable gland plate

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Color:

Gray RAL 7035)

Product Certifications:

DNV || GL || BV || cUL || UL || LR

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Enclosure Nominal Depth:

300 mm

Enclosure Nominal Height:

800 mm

Material:

steel

Installation Accessory Type:

wall-mounting

Product Or Component Type:

compact enclosure

Type Of Gland Plate:

standard

Variant Particularity:

gutter-shaped front rail double sheet thickness || single piece body

Brochure:

View

Catalog:

View

Datasheet:

View
