Schneider Electric

Schneider Electric NSYS3D8825T S3D Glazed Door.H800Xw800Xd250

(No reviews yet) Write a Review
SKU:
NSYS3D8825T
UPC:
3606480158865
Condition:
New
Range:
Spacial
Circularity Profile:
N/A
Enclosure Nominal Width:
800 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Material:
body steel || door steel and security glass
Type Of Gland Plate:
standard
Net Weight:
29 kg
Device Application:
multi-purpose
Mounting Plate Description:
without mounting plate
Rohs Exemption Information:
Yes
Ik Degree Of Protection:
IK08 IEC 62262
Enclosure Nominal Height:
800 mm
Enclosure Nominal Depth:
250 mm
Surface Finish:
epoxy-polyester powder
Door Opening Side:
reversible 120 °)
Number Of Doors:
front face 1
Sustainable Offer Status:
Green Premium product
Electromagnetic Compatibility:
electromagnetic field immunity test
Accessibility For Operation:
front
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Warranty:
18 months
Lock Type:
3 points lock, 3 mm double-bar
Installation Accessory Type:
wall-mounting
Standards:
IEC 62208
Nema Degree Of Protection:
NEMA 4X/13
Color:
Gray RAL 7035)
Product Or Component Type:
compact enclosure
Product Name:
Spacial S3D
Variant Particularity:
single piece body || gutter-shaped front rail double sheet thickness
Ip Degree Of Protection:
IP66 IEC 60529
Product Certifications:
GL || LR || UL || DNV || BV || cUL
Removable Parts:
door by hinges || cable gland plate by screws
Device Composition:
1 body || 2 cable gland plate || 1 door || 1 lock
Door Type:
Glass
Environmental Disclosure:
ENVPEP100104EN
Mercury Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Brochure:
View
Datasheet:
View
$321.45

Description

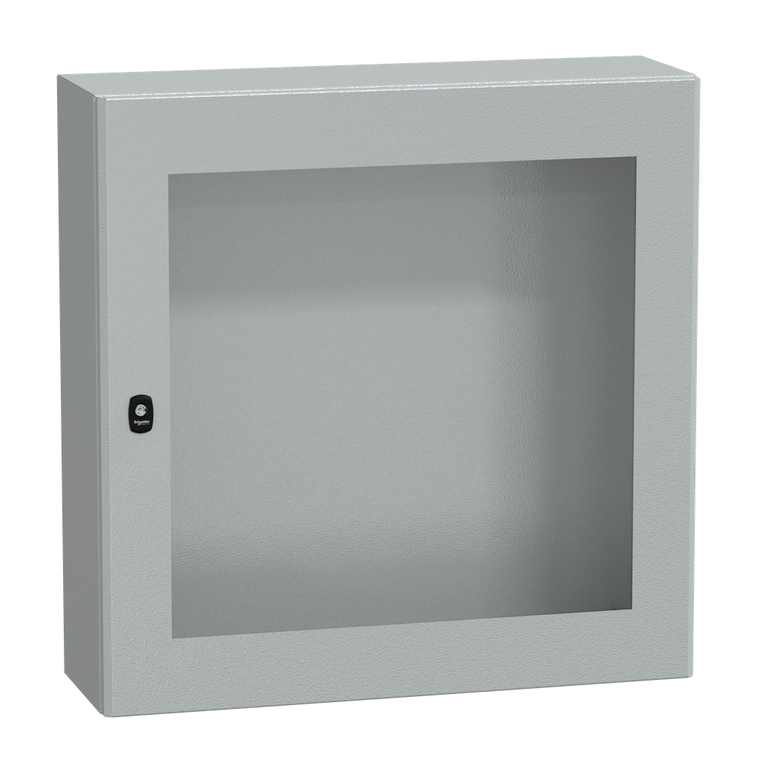

Spacial S3D wall mounted steel enclosure with glazed door. 800 x 800 x 250 mm. Single piece body, without mounting plate. Robust construction based on a new design. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Gutter shaped front rail double sheet thickness. Protection IP 66, IK08, Grey RAL 7035. 2 cable gland plates included, standard. Extensive range of accessories. Packaging is reusable after assembly.
