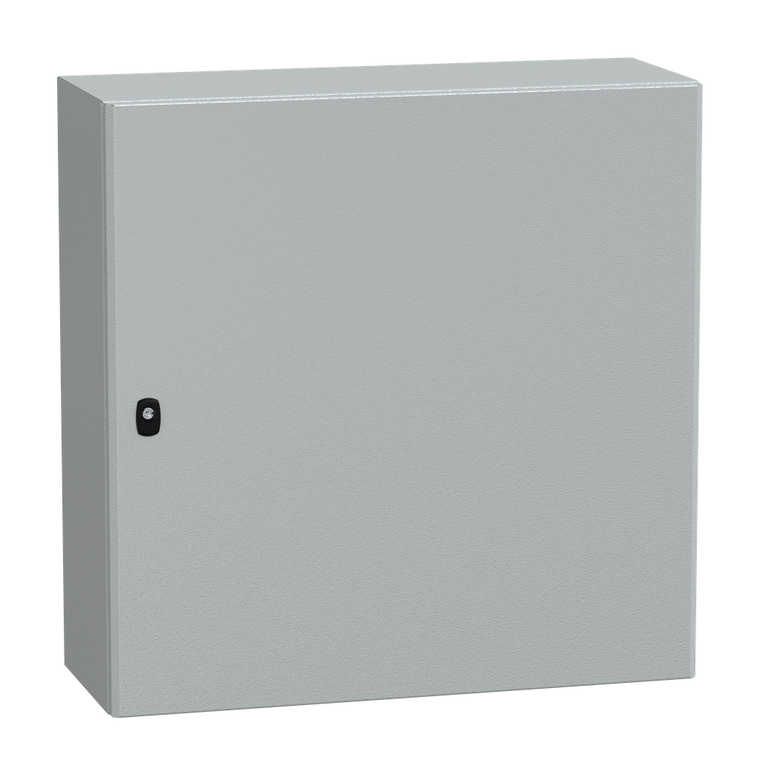

Schneider Electric NSYS3D8830P S3D H800Xw800Xd300+Plain Chassis

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3D8830P S3D H800Xw800Xd300+Plain Chassis

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3D8830P

UPC:

3606480158841

MPN:

Condition:

New

Accessibility For Operation:

front

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

Color:

enclosure Gray RAL 7035)

Type Of Gland Plate:

standard

Removable Parts:

door by hinges || cable gland plate by screws || mounting plate by fixing element

Rohs Exemption Information:

Yes

Warranty:

18 months

Door Opening Side:

reversible 120 °)

Device Composition:

1 body || 2 cable gland plate || 1 mounting plate || 1 door with lock

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Mounting Plate Description:

plain

Standards:

IEC 62208

Device Application:

multi-purpose

Ik Degree Of Protection:

IK10 IEC 62262

Enclosure Nominal Depth:

300 mm

Enclosure Nominal Height:

800 mm

Product Certifications:

DNV || BV || UL || GL || cUL || LR

Sustainable Offer Status:

Green Premium product

Installation Accessory Type:

wall-mounting

Door Type:

Solid

Product Or Component Type:

compact enclosure

Circularity Profile:

N/A

Range:

Spacial

Number Of Doors:

front face 1

Enclosure Nominal Width:

800 mm

Product Name:

Spacial S3D

Material:

enclosure steel || mounting plate galvanised steel

Nema Degree Of Protection:

NEMA 4X/13

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Surface Finish:

enclosure epoxy-polyester powder

Ip Degree Of Protection:

IP66 IEC 60529

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Lock Type:

3 points lock, 3 mm double-bar

Environmental Disclosure:

ENVPEP100104EN

Mercury Free:

Yes

Net Weight:

42 kg

Brochure:

View

Datasheet:

View
