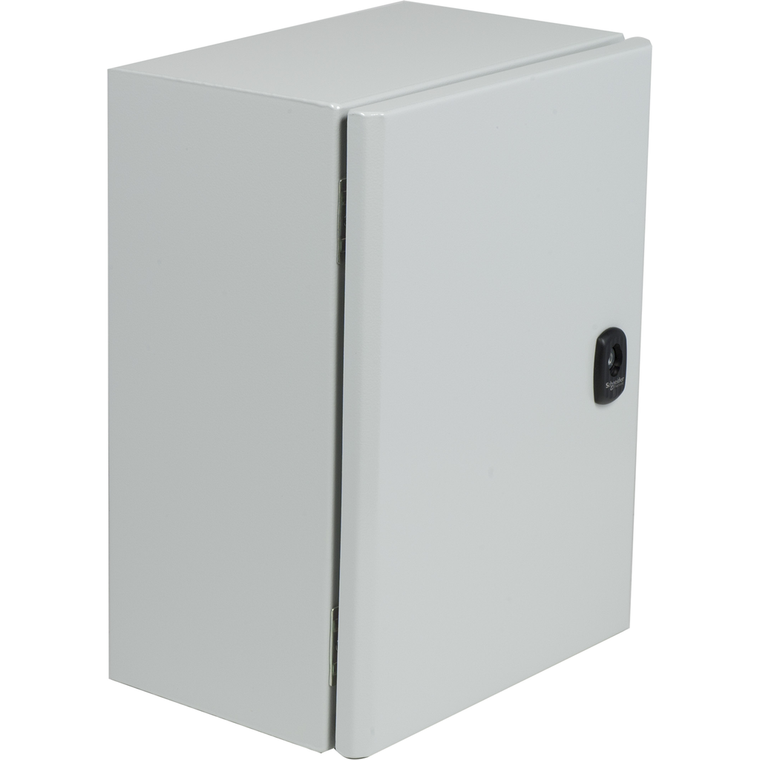

Schneider Electric NSYS3DC8825 S3Dc H800Xl800Xp250 Plain Door

SKU:

NSYS3DC8825

UPC:

3606480314179

MPN:

Condition:

New

Standards:

IEC 62208

Sustainable Offer Status:

Green Premium product

Product Or Component Type:

compact enclosure

Installation Accessory Type:

wall-mounting

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Material:

steel

Type Of Gland Plate:

without gland plate

Door Type:

Solid

Surface Finish:

epoxy-polyester powder

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Accessibility For Operation:

front

Range:

Spacial

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Warranty:

18 months

Device Application:

multi-purpose

Device Composition:

1 body || 1 door || 1 lock

Rohs Exemption Information:

Yes

Variant Particularity:

single piece body || gutter-shaped front profile double sheet thickness

Lock Type:

3 points lock, screw driver insert

Product Certifications:

UL

Ip Degree Of Protection:

IP66 IEC 60529

Ik Degree Of Protection:

IK10 IEC 62262

Door Opening Side:

reversible 120 °)

Enclosure Nominal Depth:

250 mm

Mercury Free:

Yes

Net Weight:

26.2 kg

Product Name:

Spacial S3DC

Environmental Disclosure:

ENVPEP100104EN

Number Of Doors:

front face 1

Nema Degree Of Protection:

NEMA 4X/13

Enclosure Nominal Width:

800 mm

Mounting Plate Description:

without mounting plate

Enclosure Nominal Height:

800 mm

Color:

Gray RAL 7035)

Removable Parts:

door by hinges

Circularity Profile:

N/A

Brochure:

View

Catalog:

View

Datasheet:

View
