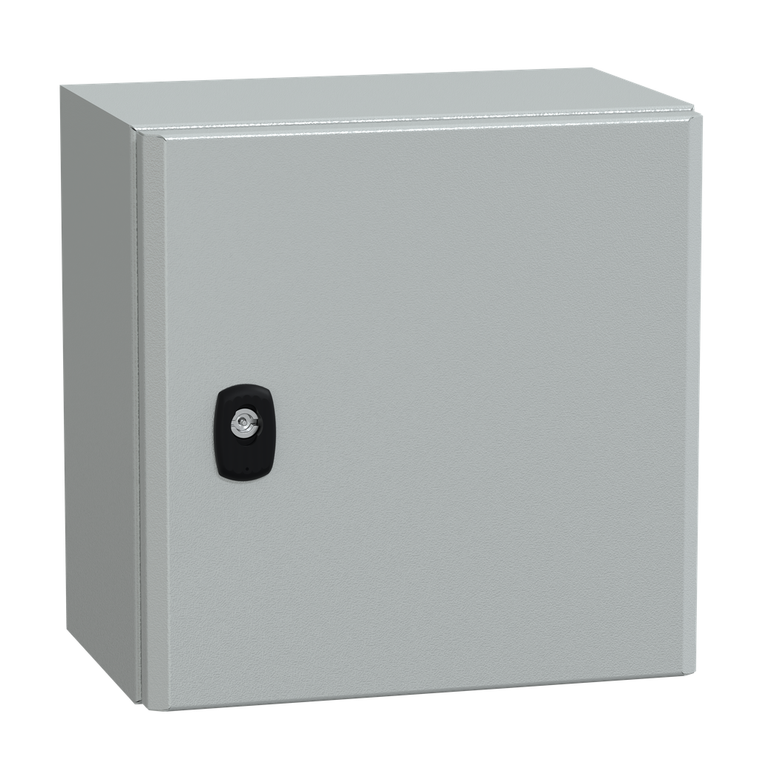

Schneider Electric NSYS3DEX3320 S3Dex Atex H300Xw300Xd200 Pl.Door

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3DEX3320 S3Dex Atex H300Xw300Xd200 Pl.Door

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3DEX3320

UPC:

3606480158667

MPN:

Condition:

New

Device Composition:

1 door || 1 lock || body with clamped blind nut

Mercury Free:

Yes

Type Of Gland Plate:

without gland plate

Standards:

EN 60079-0:2012 || EN 60079-7:2007 || EN 60079-31:2009

Product Destination:

for potentially explosive atmosphere

Warranty:

18 months

Enclosure Nominal Depth:

200 mm

Removable Parts:

door by hinges

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Installation Accessory Type:

wall-mounting

Surface Finish:

epoxy-polyester powder

Range:

Spacial

Device Application:

ATEX certified application

Environmental Disclosure:

ENVPEP100104EN

Lock Type:

double-bar lock

Ip Degree Of Protection:

IP66 IEC 60529 enclosures with single door)

Nema Degree Of Protection:

NEMA 4X/13

Net Weight:

4.6 kg

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

Door Opening Side:

reversible 120 °)

Enclosure Nominal Width:

300 mm

Accessibility For Operation:

front

Product Name:

Spacial S3DEX

Circularity Profile:

N/A

Ik Degree Of Protection:

IK10 IEC 62262

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Color:

Gray RAL 7035)

Number Of Doors:

front face 1

Product Or Component Type:

compact enclosure

Marking:

II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC

Enclosure Nominal Height:

300 mm

Door Type:

Solid

Rohs Exemption Information:

Yes

Mounting Plate Description:

without mounting plate

Sustainable Offer Status:

Green Premium product

Material:

steel

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Datasheet:

View
