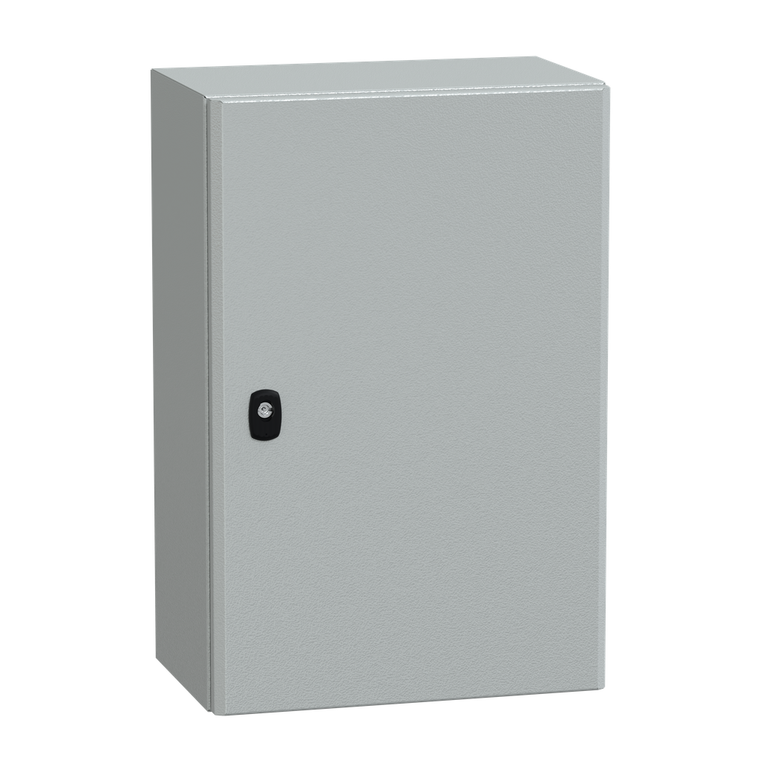

Schneider Electric NSYS3DEX6425 S3Dex Atex H600Xw400Xd250 Pl.Door

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYS3DEX6425 S3Dex Atex H600Xw400Xd250 Pl.Door

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYS3DEX6425

UPC:

3606480158629

MPN:

Condition:

New

Variant Particularity:

single piece body || gutter-shaped front rail double sheet thickness

Color:

Gray RAL 7035)

Nema Degree Of Protection:

NEMA 4X/13

Warranty:

18 months

Installation Accessory Type:

wall-mounting

Range:

Spacial

Rohs Exemption Information:

Yes

Net Weight:

12 kg

Surface Finish:

epoxy-polyester powder

Sustainable Offer Status:

Green Premium product

Ik Degree Of Protection:

IK10 IEC 62262

Standards:

EN 60079-0:2012 || EN 60079-7:2007 || EN 60079-31:2009

Accessibility For Operation:

front

Enclosure Nominal Width:

400 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Device Application:

ATEX certified application

Device Composition:

1 door || 1 lock || body with clamped blind nut

Door Type:

Solid

Product Name:

Spacial S3DEX

Product Or Component Type:

compact enclosure

Ip Degree Of Protection:

IP66 IEC 60529 enclosures with single door)

Door Opening Side:

reversible 120 °)

Product Destination:

for potentially explosive atmosphere

Circularity Profile:

N/A

Mounting Plate Description:

without mounting plate

Lock Type:

3 points lock, 3 mm double-bar

Enclosure Nominal Height:

600 mm

Enclosure Nominal Depth:

250 mm

Removable Parts:

door by hinges

Number Of Doors:

front face 1

Type Of Gland Plate:

without gland plate

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Disclosure:

ENVPEP100104EN

Marking:

II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC

Material:

steel

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Mercury Free:

Yes

Catalog:

View

Datasheet:

View
