Schneider Electric

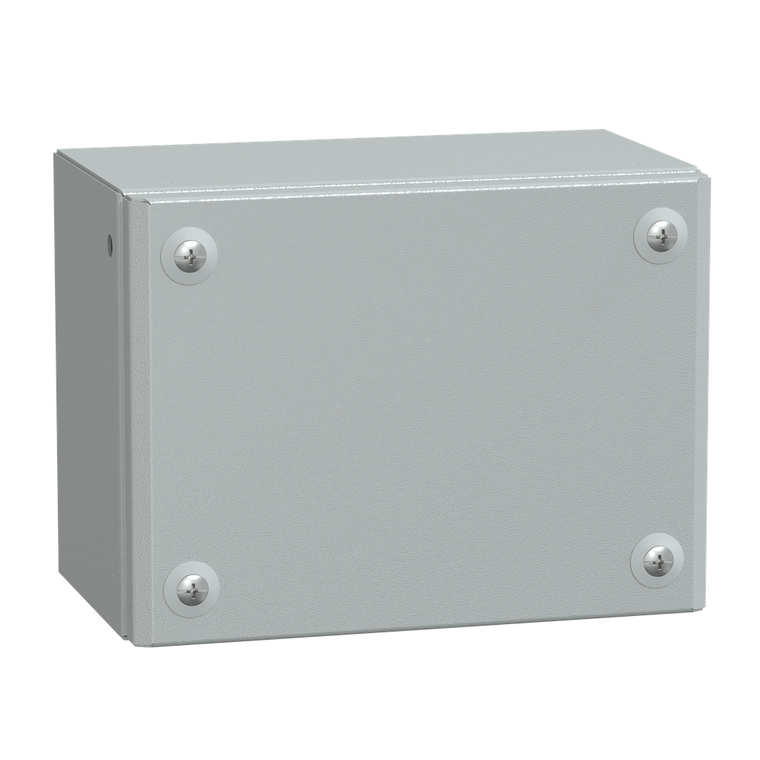

Schneider Electric NSYSBM152012 Metal Ind Flat Box 150X200X120

(No reviews yet) Write a Review
SKU:
NSYSBM152012
UPC:
3606480520112
Condition:
New
Device Composition:
4 cover screw || 1 cover || 1 body
Device Application:
multi-purpose
Ip Degree Of Protection:
IP66 IEC 60529
Sustainable Offer Status:
Green Premium product
Circularity Profile:
N/A
Removable Parts:
cover by captive screws
Ambient Air Temperature For Storage:
-35-60 °C
Device Short Name:
SBM
Enclosure Nominal Depth:
120 mm
Ambient Air Temperature For Operation:
-35-80 °C
Enclosure Type:
flat face box
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Rohs Exemption Information:
Yes
Product Name:
Spacial SBM
Standards:
IEC 62208
Enclosure Mounting:
wall mounted
Environmental Disclosure:
ENVPEP121023EN
Net Weight:
1.542 kg
Product Certifications:
LR || DNV-GL || UL || BV
Enclosure Nominal Width:
200 mm
Lock Type:
captive screw PZ2 outside sealed area
Toxic Heavy Metal Free:
Yes
Ik Degree Of Protection:
IK10 IEC 62262
Reach Free Of Svhc:
Yes
Range:
Spacial
Body Type:
single piece body folded and welded
Surface Finish:
polyester powder
Warranty:
18 months
Enclosure Nominal Height:
150 mm
Color:
Gray RAL 7035)
Type Of Front Cover:
plain door
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Or Component Type:
industrial box
Cover Fixing:
half turn metal screw
Material:
sheet steel
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free:
Yes
Brochure:
View
Catalog:
View
Datasheet:
View
$63.75

Description

Industrial box for Spacial SBM. Multi purpose. 150 x 200 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of steel with polyester powder finish. Protection IP 66, IK10.
