Schneider Electric

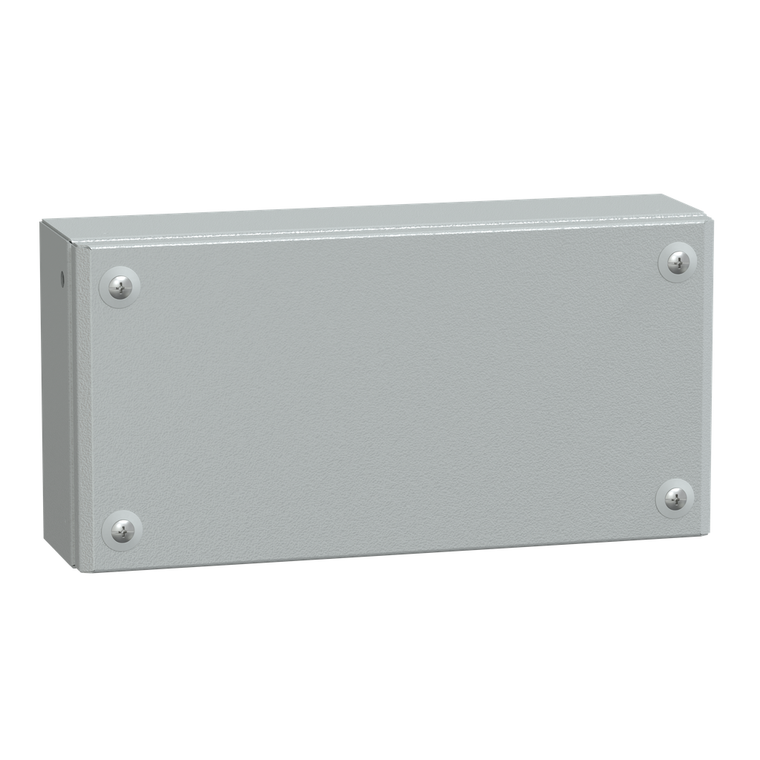

Schneider Electric NSYSBM15308 Metal Ind Flat Box 150X300X80

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYSBM15308 Metal Ind Flat Box 150X300X80

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSBM15308

UPC:

3.60648E+12

MPN:

Condition:

New

Product Certifications:

LR || DNV-GL || UL || BV

Product Name:

Spacial SBM

Mercury Free:

Yes

Color:

Gray RAL 7035)

Type Of Front Cover:

plain door

Enclosure Nominal Depth:

80 mm

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP66 IEC 60529

Surface Finish:

polyester powder

Cover Fixing:

half turn metal screw

Ik Degree Of Protection:

IK10 IEC 62262

Device Application:

multi-purpose

Ambient Air Temperature For Storage:

-35-60 °C

Device Composition:

4 cover screw || 1 cover || 1 body

Material:

sheet steel

Reach Free Of Svhc:

Yes

Enclosure Type:

flat face box

Device Short Name:

SBM

Range:

Spacial

Warranty:

18 months

Ambient Air Temperature For Operation:

-35-80 °C

Body Type:

single piece body folded and welded

Sustainable Offer Status:

Green Premium product

Removable Parts:

cover by captive screws

Enclosure Mounting:

wall mounted

Circularity Profile:

N/A

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Product Or Component Type:

industrial box

Enclosure Nominal Height:

150 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic Heavy Metal Free:

Yes

Net Weight:

1.754 kg

Enclosure Nominal Width:

300 mm

Lock Type:

captive screw PZ2 outside sealed area

Environmental Disclosure:

ENVPEP121023EN

Standards:

IEC 62208

Brochure:

View

Catalog:

View

Datasheet:

View
