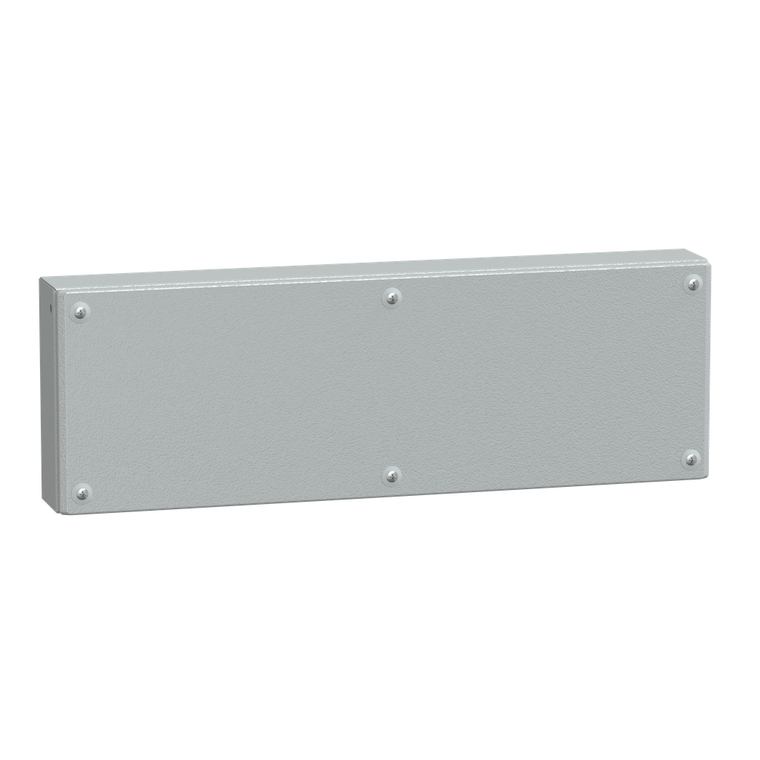

Schneider Electric NSYSBM20608 Metal Ind Flat Box 200X600X80

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYSBM20608 Metal Ind Flat Box 200X600X80

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSBM20608

UPC:

3606480520099

MPN:

Condition:

New

Net Weight:

4.25 kg

Warranty:

18 months

Cover Fixing:

half turn metal screw

Lock Type:

captive screw PZ2 outside sealed area

Enclosure Nominal Height:

200 mm

Type Of Front Cover:

plain door

Ik Degree Of Protection:

IK10 IEC 62262

Enclosure Nominal Width:

600 mm

Environmental Disclosure:

ENVPEP121023EN

Material:

sheet steel

Mercury Free:

Yes

Standards:

IEC 62208

Rohs Exemption Information:

Yes

Ambient Air Temperature For Operation:

-35-80 °C

Enclosure Mounting:

wall mounted

Enclosure Nominal Depth:

80 mm

Removable Parts:

cover by captive screws

Product Name:

Spacial SBM

Surface Finish:

polyester powder

Circularity Profile:

N/A

Ambient Air Temperature For Storage:

-35-60 °C

Product Or Component Type:

industrial box

Color:

Gray RAL 7035)

Toxic Heavy Metal Free:

Yes

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Body Type:

single piece body folded and welded

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Composition:

1 cover || 1 body || 6 cover screw

Device Application:

multi-purpose

Device Short Name:

SBM

Enclosure Type:

flat face box

Ip Degree Of Protection:

IP66 IEC 60529

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Sustainable Offer Status:

Green Premium product

Reach Free Of Svhc:

Yes

Product Certifications:

LR || DNV-GL || UL || BV

Range:

Spacial

Brochure:

View

Catalog:

View

Datasheet:

View
