Schneider Electric NSYSFBK Standard Coupling Kit Sf/Sfn
Schneider Electric
$161.84
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYSFBK Standard Coupling Kit Sf/Sfn
Spacial SF standards coupling kit, coupling side by side or depthwise. 70 x 105 x 150 mm. Multi-purpose application. Mounting location on Depthwise coupling of 2 enclosures and side coupling of 2 enclosures. Fixing mode By screws M6 self tapping.
- Depth:
- 365 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Surface Finish:
- zinc coated
- Ip Degree Of Protection:
- IP55
- Mounting Location:
- side coupling of 2 enclosures || depthwise coupling of 2 enclosures
- Accessory / Separate Part Category:
- coupling accessory
- Fixing Mode:
- by screws M6 self tapping
- Mercury Free:
- Yes
- Device Application:
- multi-purpose
- Device Composition:

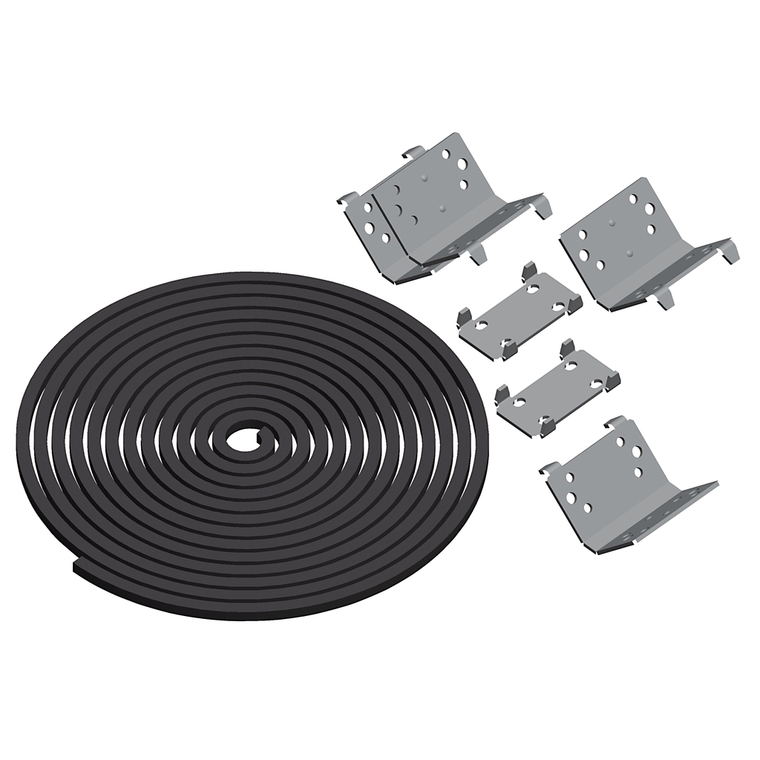

- 2 flat connector || 4 bracket || fixing elements || sealing gasket
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mounting Diameter:
- 0 mm
- Range:
- Spacial
- Height:
- 65 mm
- Product Or Component Type:
- coupling kit
- Quantity Per Set:
- set of 1
- Environmental Disclosure:
- ENVPEP110923EN
- Material:
- sealing gasket EPDM || bracket steel || flat connector steel
- Rohs Exemption Information:
- Yes
- Warranty:
- 18 months
- Width:
- 340 mm
- Range Compatibility:
- Spacial Spacial SF suitable enclosure
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Circularity Profile:
- N/A
- Catalog:
- View
- Datasheet:
- View
