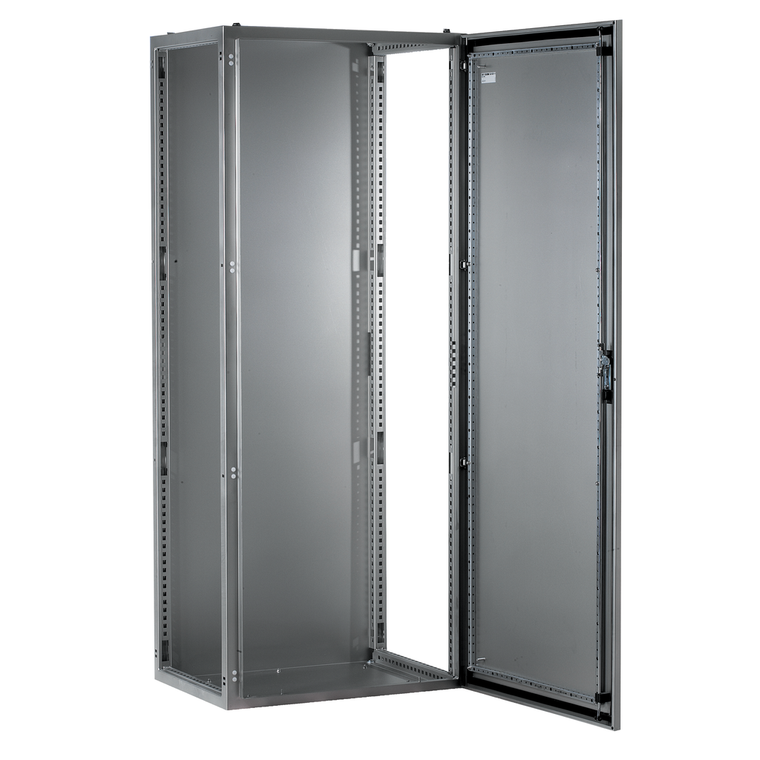

Schneider Electric NSYSFX181240 Sfx 304L 1800X1200X400

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYSFX181240 Sfx 304L 1800X1200X400

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSFX181240

UPC:

3.60648E+12

MPN:

Condition:

New

Type Of Gland Plate:

plain

Product Or Component Type:

suitable enclosure

Rohs Exemption Information:

Yes

Warranty:

18 months

Lock Type:

3 points lock, handle with 5 mm double-bar insert

Device Application:

multi-purpose

Circularity Profile:

N/A

Device Composition:

1 structure || 2 door with reinforcement frame || 1 locking system with handle door || 4 mounting plate bracket || 1 cable gland plate

Mercury Free:

Yes

Door Type:

Solid

Door Opening Side:

reversible 120 °)

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP2107011EN

Enclosure Nominal Depth:

400 mm

Environmental Characteristic:

corrosive || specific hygiene

Ik Degree Of Protection:

IK10 IEC 62262

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Material:

structure and door stainless steel 304L || handle zamak || hinge stainless steel

Number Of Doors:

front face 2

Removable Parts:

door by hinges || mounting plate bracket by screws || cable gland plate by clips

Body Type:

single piece structure folded and welded || rear panel integrated

Mounting Plate Description:

without mounting plate

Range:

Spacial

Net Weight:

120 kg

Surface Finish:

enclosure Scotch-Brite® brushed || handle painted

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Enclosure Nominal Height:

1800 mm

Enclosure Nominal Width:

1200 mm

Installation Accessory Type:

floor-standing

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP55 IEC 60529

Product Name:

Spacial SFX

Standards:

IEC 62208

Accessibility For Operation:

side || front

Brochure:

View

Catalog:

View

Datasheet:

View
