Schneider Electric

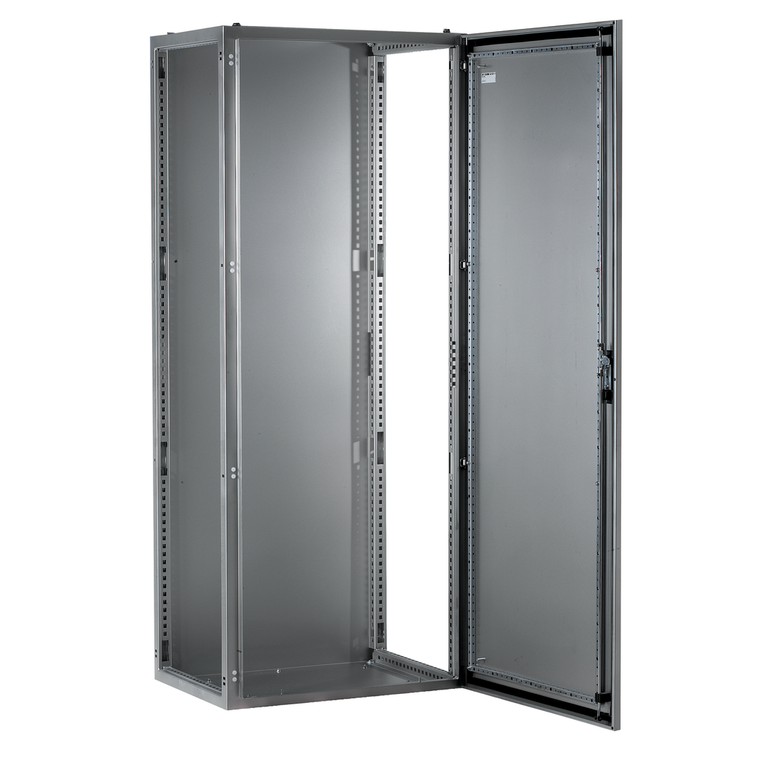

Schneider Electric NSYSFX20840 Sfx 304L 2000X800X400

SKU:

NSYSFX20840

UPC:

3.60648E+12

MPN:

Condition:

New

Product Certifications:

UL

Product Or Component Type:

suitable enclosure

Enclosure Nominal Height:

2000 mm

Accessibility For Operation:

front || side

Door Opening Side:

reversible 120 °)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Environmental Disclosure:

ENVPEP2107011EN

Body Type:

rear panel integrated || single piece structure folded and welded

Mercury Free:

Yes

Warranty:

18 months

Ip Degree Of Protection:

IP66 IEC 60529

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Environmental Characteristic:

corrosive || specific hygiene

Rohs Exemption Information:

Yes

Standards:

IEC 62208 || NEMA 4X

Ik Degree Of Protection:

IK10 IEC 62262

Enclosure Nominal Width:

800 mm

Circularity Profile:

N/A

Enclosure Nominal Depth:

400 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Removable Parts:

door by hinges || mounting plate bracket by screws || cable gland plate by clips

Installation Accessory Type:

floor-standing

Device Composition:

1 structure || 1 locking system with handle door || 4 mounting plate bracket || 1 cable gland plate || 1 door with reinforcement frame

Number Of Doors:

front face 1

Net Weight:

90 kg

Range:

Spacial

Device Application:

multi-purpose

Sustainable Offer Status:

Green Premium product

Door Type:

Solid

Mounting Plate Description:

without mounting plate

Type Of Gland Plate:

plain

Lock Type:

3 points lock, handle with 5 mm double-bar insert

Material:

structure and door stainless steel 304L || handle zamak || hinge stainless steel

Product Name:

Spacial SFX

Surface Finish:

enclosure Scotch-Brite® brushed || handle painted
