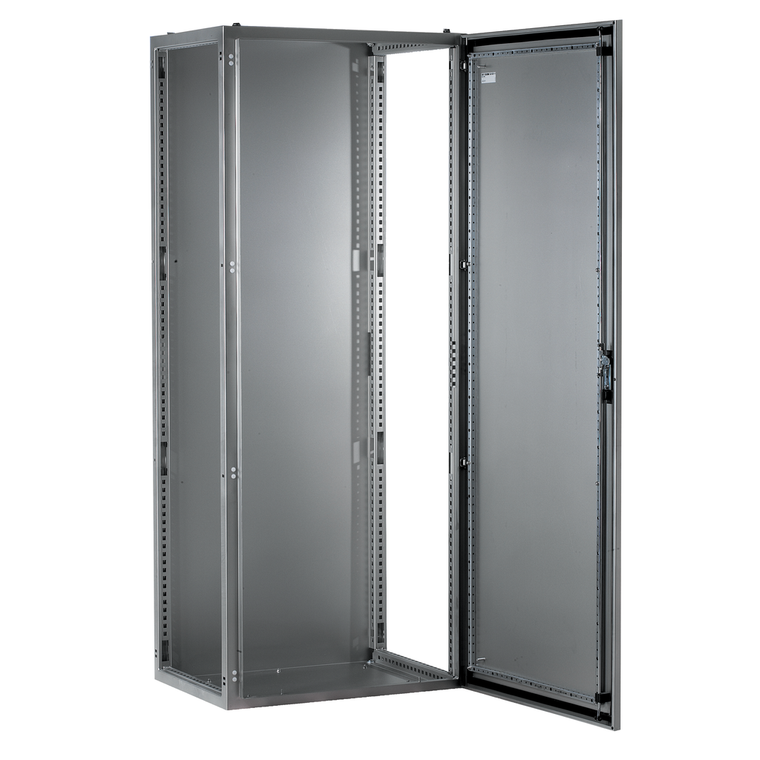

Schneider Electric NSYSFX20860 Sfx 304L 2000X800X600

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYSFX20860 Sfx 304L 2000X800X600

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSFX20860

UPC:

3.61E+12

MPN:

Condition:

New

Standards:

IEC 62208 || NEMA 4X

Product Or Component Type:

suitable enclosure

Type Of Gland Plate:

plain

Circularity Profile:

N/A

Device Composition:

1 structure || 1 locking system with handle door || 4 mounting plate bracket || 1 cable gland plate || 1 door with reinforcement frame

Product Certifications:

UL

Enclosure Nominal Width:

800 mm

Door Opening Side:

reversible 120 °)

Body Type:

rear panel integrated || single piece structure folded and welded

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Material:

structure and door stainless steel 304L || handle zamak || hinge stainless steel

Mercury Free:

Yes

Ip Degree Of Protection:

IP66 IEC 60529

Range:

Spacial

Number Of Doors:

front face 1

Mounting Plate Description:

without mounting plate

Environmental Disclosure:

ENVPEP2107011EN

Rohs Exemption Information:

Yes

Installation Accessory Type:

floor-standing

Device Application:

multi-purpose

Ik Degree Of Protection:

IK10 IEC 62262

Accessibility For Operation:

front || side

Door Type:

Solid

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Name:

Spacial SFX

Warranty:

18 months

Lock Type:

3 points lock, handle with 5 mm double-bar insert

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Net Weight:

81 kg

Environmental Characteristic:

specific hygiene || corrosive

Surface Finish:

enclosure Scotch-Brite® brushed || handle painted

Enclosure Nominal Depth:

600 mm

Removable Parts:

door by hinges || mounting plate bracket by screws || cable gland plate by clips

Sustainable Offer Status:

Green Premium product

Enclosure Nominal Height:

2000 mm

Brochure:

View

Catalog:

View

Datasheet:

View
