Schneider Electric NSYSICR90100 2 Integrated Rails H90 W1000Mm
Schneider Electric
$157.50
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

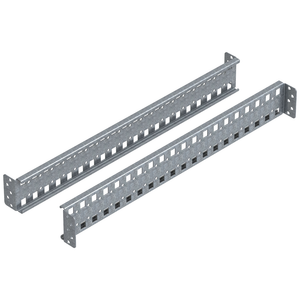

Integrated cross rails, PanelSeT SFN, Spacial SF, H90 W1000mm, set of 2
- Product Specific Application:
- 30 mm additional space on each fixation side (a total of 60 mm)
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Adjustment:
- adjustable with a pitch of 25 mm
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Number Of Horizontal Rows:
- 3
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Fixing Mode:
- by screws
- Toxic Heavy Metal Free:
- Yes
- Accessory / Separate Part Category:
- mounting accessory
- Range:
- Spacial
- Mounting Location:
- on structure of enclosure
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- cross rail
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Height:
- 90 mm
- Thickness:
- 1.5 mm
- Device Composition:
- fixing elements || 2 cross rails
- Depth:
- 12 mm
- Quantity Per Set:
- set of 1
- Material:
- galvanised steel
- Maximum Load:
- 70 kg
- Device Application:
- multi-purpose
- Width:
- nominal 1000 mm || useful 909 mm
- Mounting Support:
- upright
- Range Compatibility:
- Spacial Spacial SF suitable enclosure || Spacial Spacial SM compact enclosure
- Datasheet:
- View
