Schneider Electric NSYSM1412402D Sm Wo/Mount Plat 2D 1400X1200X400
Schneider Electric
$1,744.80
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYSM1412402D Sm Wo/Mount Plat 2D 1400X1200X400

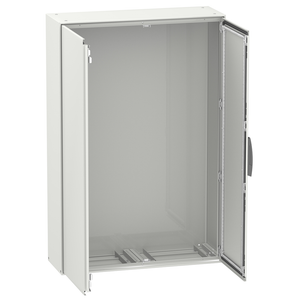

Spacial SM monobloc compact steel enclosure with 2 plain front doors. 1400 x 1200 x 400 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
- Mounting Plate Description:
- without mounting plate
- Accessibility For Operation:
- front
- Cable Entry:
- 1 entry
- Device Application:
- multi-purpose
- Circularity Profile:
- N/A
- Ik Degree Of Protection:
- IK10 IEC 62262
- Product Name:
- Spacial SM
- Door Opening Side:
- left 120 °) || right 120 °)
- Environmental Disclosure:
- ENVPEP110923EN
- Rohs Exemption Information:
- Yes
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range:
- Spacial
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Net Weight:
- 81 kg
- Ip Degree Of Protection:
- IP55 IEC 60529
- Surface Finish:
- epoxy-polyester powder
- Removable Parts:
- door by screws hinge || mounting plate bracket by screws
- Standards:
- IEC 62208
- Material:
- body sheet steel || door sheet steel || hinge zamak
- Number Of Doors:
- front 2
- Mercury Free:
- Yes
- Device Composition:
- 1 body || 2 door || 2 cable gland plate || 1 locking system with handle door || 1 blocking system left door || 4 mounting plate bracket
- Lock Type:
- 4 points lock, handle with 5 mm double bar insert
- Type Of Gland Plate:
- standard
- Installation Accessory Type:
- floor-standing
- Door Type:
- Solid
- Product Or Component Type:
- compact enclosure
- Enclosure Nominal Width:
- 1200 mm
- Body Type:
- single piece body with welded rear panel || front part forming a rigid frame with welded corners
- Warranty:
- 18 months
- Sustainable Offer Status:
- Green Premium product
- Product Certifications:
- DNV || UL || BV
- Color:
- enclosure Gray RAL 7035) || handle Black RAL 9005)
- Enclosure Nominal Height:
- 1400 mm
- Enclosure Nominal Depth:
- 400 mm
- Catalog:
- View
- Datasheet:
- View
