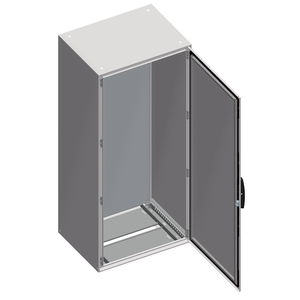

Schneider Electric NSYSM16630 Sm Wo/Mount Plate 1600X600X300

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYSM16630 Sm Wo/Mount Plate 1600X600X300

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSM16630

UPC:

3606485120553

MPN:

Condition:

New

Range:

Spacial

Ip Degree Of Protection:

IP55 IEC 60529

Number Of Doors:

front 1

Circularity Profile:

N/A

Standards:

IEC 62208

Removable Parts:

door by screws hinge || mounting plate bracket by screws

Device Application:

multi-purpose

Cable Entry:

1 entry

Door Opening Side:

reversible 120 °)

Product Name:

Spacial SM

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Device Composition:

1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 door

Mercury Free:

Yes

Ik Degree Of Protection:

IK10 IEC 62262

Environmental Disclosure:

ENVPEP110923EN

Surface Finish:

epoxy-polyester powder

Type Of Gland Plate:

standard

Product Or Component Type:

compact enclosure

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Nominal Width:

600 mm

Net Weight:

62 kg

Material:

body sheet steel || door sheet steel || hinge zamak

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Mounting Plate Description:

without mounting plate

Lock Type:

4 points lock, handle with 5 mm double bar insert

Enclosure Nominal Depth:

300 mm

Accessibility For Operation:

front

Body Type:

front part forming a rigid frame with welded corners || single piece body with welded rear panel

Enclosure Nominal Height:

1600 mm

Door Type:

Solid

Installation Accessory Type:

floor-standing

Product Certifications:

BV || UL || DNV

Warranty:

18 months

Color:

enclosure Gray RAL 7035) || handle Black RAL 9005)

Catalog:

View

Datasheet:

View
