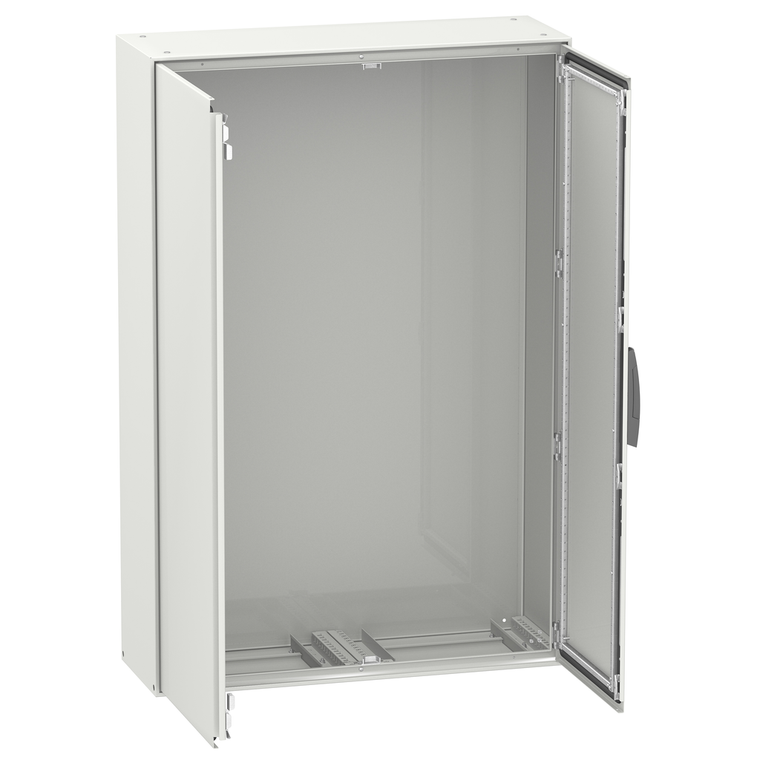

Schneider Electric NSYSM2012502D Sm Wo/Mount Plat 2D 2000X1200X500

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYSM2012502D Sm Wo/Mount Plat 2D 2000X1200X500

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSM2012502D

UPC:

3.60649E+12

MPN:

Condition:

New

Material:

body sheet steel || door sheet steel || hinge zamak

Device Composition:

1 body || 2 door || 2 cable gland plate || 1 locking system with handle door || 1 blocking system left door || 4 mounting plate bracket

Standards:

IEC 62208

Lock Type:

4 points lock, handle with 5 mm double bar insert

Device Application:

multi-purpose

Installation Accessory Type:

floor-standing

Color:

enclosure Gray RAL 7035) || handle Black RAL 9005)

Enclosure Nominal Height:

2000 mm

Ik Degree Of Protection:

IK10 IEC 62262

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP55 IEC 60529

Cable Entry:

1 entry

Mercury Free:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Environmental Disclosure:

ENVPEP110923EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Enclosure Nominal Depth:

500 mm

Sustainable Offer Status:

Green Premium product

Warranty:

18 months

Product Certifications:

UL || BV || DNV

Product Or Component Type:

compact enclosure

Product Name:

Spacial SM

Door Type:

Solid

Accessibility For Operation:

front

Range:

Spacial

Circularity Profile:

N/A

Mounting Plate Description:

without mounting plate

Type Of Gland Plate:

standard

Body Type:

front part forming a rigid frame with welded corners || single piece body with welded rear panel

Removable Parts:

door by screws hinge || mounting plate bracket by screws

Net Weight:

140 kg

Number Of Doors:

front 2

Surface Finish:

epoxy-polyester powder

Door Opening Side:

left 120 °) || right 120 °)

Rohs Exemption Information:

Yes

Enclosure Nominal Width:

1200 mm
