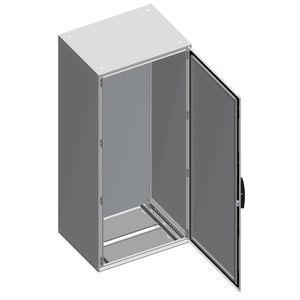

Schneider Electric NSYSM20650 Sm Wo/Mount Plate 2000X600X500

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYSM20650 Sm Wo/Mount Plate 2000X600X500

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSM20650

UPC:

3.60649E+12

MPN:

Condition:

New

Range:

Spacial

Enclosure Nominal Height:

2000 mm

Enclosure Nominal Width:

600 mm

Enclosure Nominal Depth:

500 mm

Sustainable Offer Status:

Green Premium product

Environmental Disclosure:

ENVPEP110923EN

Device Composition:

1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 door

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Door Type:

Solid

Ip Degree Of Protection:

IP55 IEC 60529

Mercury Free:

Yes

Device Application:

multi-purpose

Net Weight:

88 kg

Removable Parts:

door by screws hinge || mounting plate bracket by screws

Rohs Exemption Information:

Yes

Cable Entry:

1 entry

Surface Finish:

epoxy-polyester powder

Body Type:

single piece body with welded rear panel || front part forming a rigid frame with welded corners

Product Certifications:

DNV || UL || BV

Product Or Component Type:

compact enclosure

Mounting Plate Description:

without mounting plate

Material:

body sheet steel || door sheet steel || hinge zamak

Product Name:

Spacial SM

Warranty:

18 months

Installation Accessory Type:

floor-standing

Color:

enclosure Gray RAL 7035) || handle Black RAL 9005)

Number Of Doors:

front 1

Ik Degree Of Protection:

IK10 IEC 62262

Accessibility For Operation:

front

Type Of Gland Plate:

standard

Door Opening Side:

reversible 120 °)

Standards:

IEC 62208

Lock Type:

4 points lock, handle with 5 mm double bar insert

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

N/A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Catalog:

View

Datasheet:

View
