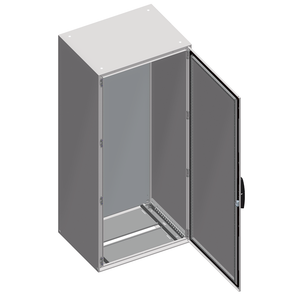

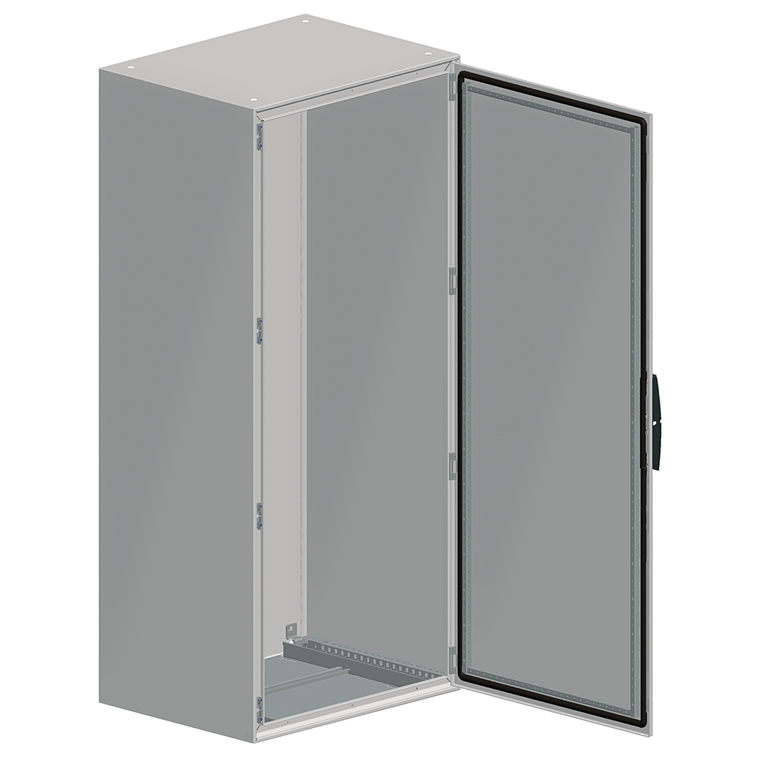

Schneider Electric NSYSM20840 Sm Wo/Mount Plate 2000X800X400

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYSM20840 Sm Wo/Mount Plate 2000X800X400

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSM20840

UPC:

3.60649E+12

MPN:

Condition:

New

Type Of Gland Plate:

standard

Enclosure Nominal Height:

2000 mm

Device Composition:

1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 door

Standards:

IEC 62208

Number Of Doors:

front 1

Enclosure Nominal Depth:

400 mm

Sustainable Offer Status:

Green Premium product

Door Opening Side:

reversible 120 °)

Installation Accessory Type:

floor-standing

Enclosure Nominal Width:

800 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Net Weight:

90 kg

Ik Degree Of Protection:

IK10 IEC 62262

Body Type:

front part forming a rigid frame with welded corners || single piece body with welded rear panel

Mercury Free:

Yes

Device Application:

multi-purpose

Product Name:

Spacial SM

Mounting Plate Description:

without mounting plate

Surface Finish:

epoxy-polyester powder

Range:

Spacial

Product Certifications:

UL || DNV || BV

Color:

enclosure Gray RAL 7035) || handle Black RAL 9005)

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP55 IEC 60529

Product Or Component Type:

compact enclosure

Door Type:

Solid

Circularity Profile:

N/A

Cable Entry:

1 entry

Accessibility For Operation:

front

Warranty:

18 months

Material:

body sheet steel || door sheet steel || hinge zamak

Rohs Exemption Information:

Yes

Lock Type:

4 points lock, handle with 5 mm double bar insert

Removable Parts:

door by screws hinge || mounting plate bracket by screws

Environmental Disclosure:

ENVPEP110923EN

Catalog:

View

Datasheet:

View
