Schneider Electric NSYSM20850T Sm Glazed Door Wo/Mp 2000X800X500
Schneider Electric
$3,746.62
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric NSYSM20850T Sm Glazed Door Wo/Mp 2000X800X500

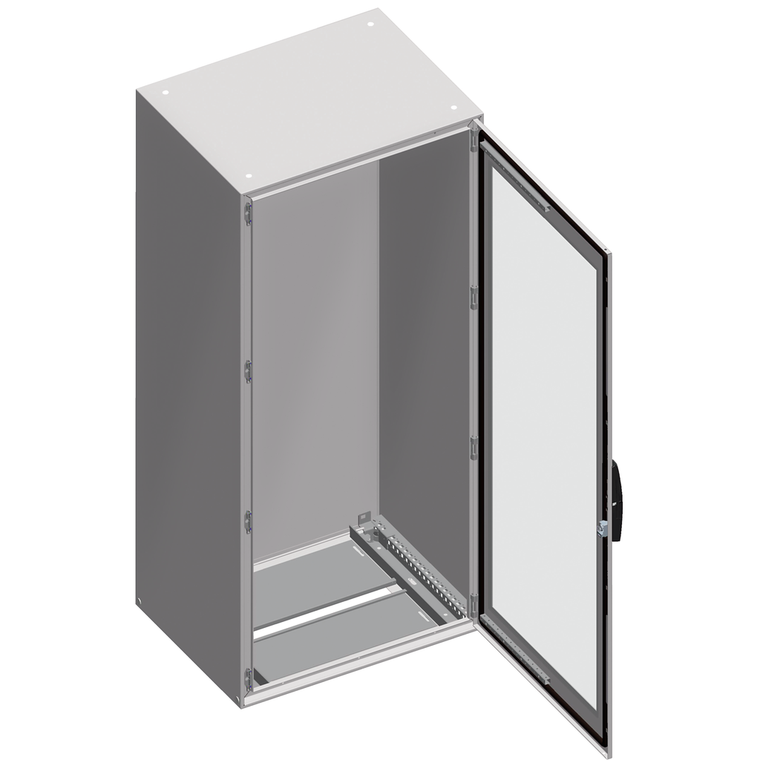

Spacial SM monobloc compact steel enclosure with glazed door. 2000 x 800 x 500 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK08, Grey RAL 7035. 4 mounting plate support brackets included.
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Warranty:
- 18 months
- Device Application:
- multi-purpose
- Circularity Profile:
- N/A
- Net Weight:
- 102 kg
- Enclosure Nominal Depth:
- 500 mm
- Number Of Doors:
- front 1
- Ik Degree Of Protection:
- IK08 IEC 62262
- Rohs Exemption Information:
- Yes
- Installation Accessory Type:
- floor-standing
- Standards:
- IEC 62208
- Sustainable Offer Status:
- Green Premium product
- Enclosure Nominal Height:
- 2000 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Door Type:
- Glass
- Accessibility For Operation:
- front
- Product Certifications:
- UL || BV || DNV
- Range:
- Spacial
- Body Type:
- single piece body with welded rear panel || front part forming a rigid frame with welded corners
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Surface Finish:
- epoxy-polyester powder
- Door Opening Side:
- reversible 120 °)
- Device Composition:
- 1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 door
- Mercury Free:
- Yes
- Cable Entry:
- 1 entry
- Color:
- enclosure Gray RAL 7035) || handle Black RAL 9005)
- Product Name:
- Spacial SM
- Enclosure Nominal Width:
- 800 mm
- Material:
- door Securit glass || body sheet steel || door sheet steel || hinge zamak
- Removable Parts:
- door by screws hinge || mounting plate bracket by screws
- Ip Degree Of Protection:
- IP55 IEC 60529
- Product Or Component Type:
- compact enclosure
- Lock Type:
- 4 points lock, handle with 5 mm double bar insert
- Mounting Plate Description:
- without mounting plate
- Environmental Disclosure:
- ENVPEP110923EN
- Type Of Gland Plate:
- standard
- Datasheet:
- View
