Schneider Electric

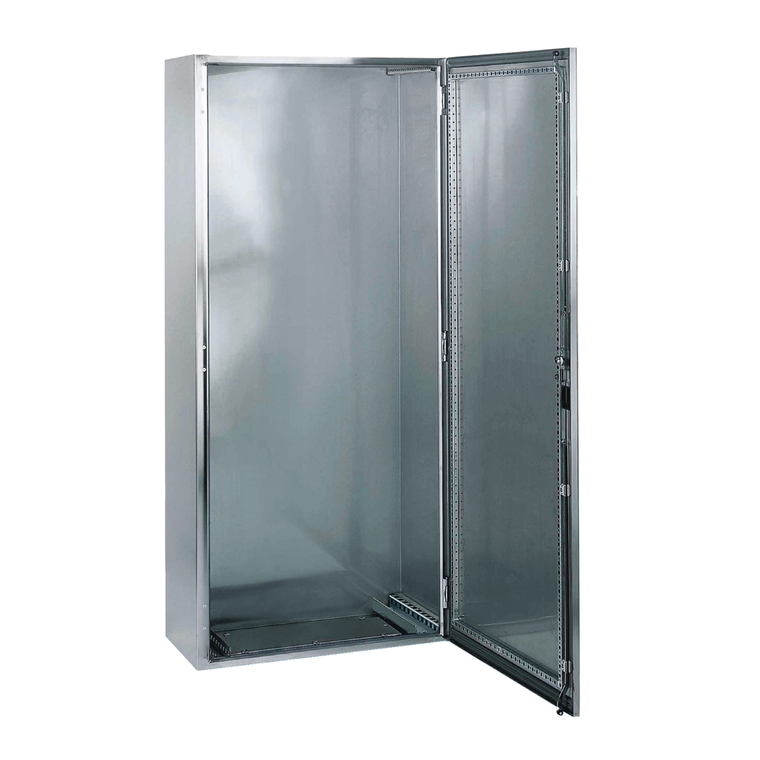

Schneider Electric NSYSMX18840H Smx 316L 1800X800X400

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric NSYSMX18840H Smx 316L 1800X800X400

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSMX18840H

UPC:

3.60648E+12

MPN:

Condition:

New

Warranty:

18 months

Standards:

IEC 62208

Surface Finish:

enclosure Scotch-Brite® brushed || handle painted

Product Or Component Type:

compact enclosure

Mercury Free:

Yes

Circularity Profile:

N/A

Type Of Gland Plate:

plain

Enclosure Nominal Width:

800 mm

Installation Accessory Type:

floor-standing

Material:

handle zamak || hinge stainless steel || body and door stainless steel 316L

Net Weight:

98 kg

Device Application:

multi-purpose

Enclosure Nominal Depth:

400 mm

Ik Degree Of Protection:

IK10 IEC 62262

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Name:

Spacial SMX

Door Opening Side:

reversible 120 °)

Device Composition:

1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 door

Accessibility For Operation:

front

Product Certifications:

UL 508 || CAN/CSA 22

Mounting Plate Description:

without mounting plate

Door Type:

Solid

Removable Parts:

door by hinges || mounting plate bracket by screws || cable gland plate by clips

Body Type:

single piece body folded and welded

Lock Type:

3 points lock, handle with 5 mm double-bar insert

Environmental Disclosure:

ENVPEP2107011EN

Ip Degree Of Protection:

IP66 IEC 60529

Number Of Doors:

front face 1

Enclosure Nominal Height:

1800 mm

Sustainable Offer Status:

Green Premium product

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Environmental Characteristic:

corrosive || specific hygiene

Range:

Spacial

Rohs Exemption Information:

Yes

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Brochure:

View

Catalog:

View

Datasheet:

View
