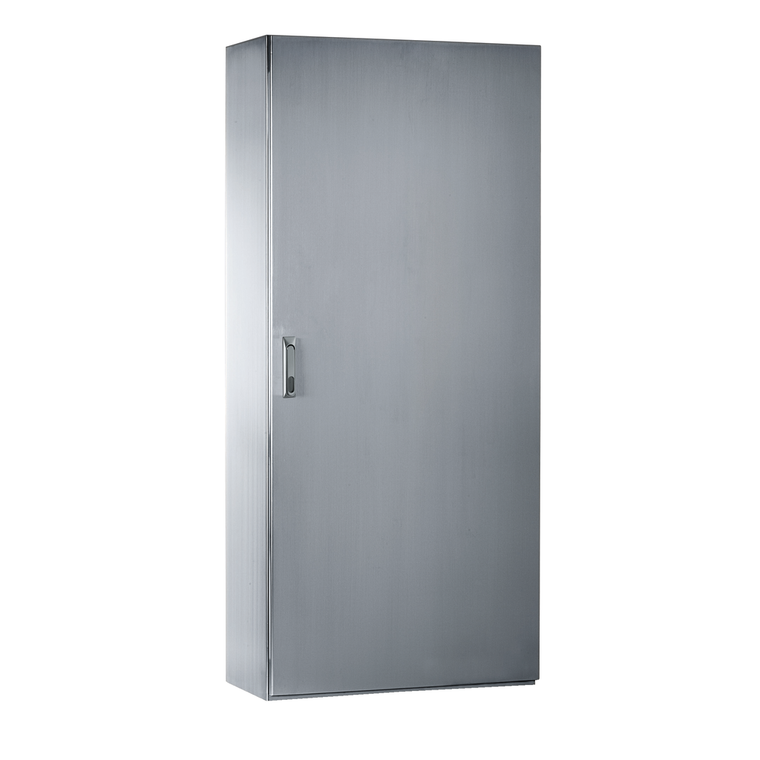

Schneider Electric NSYSMX20850 Smx 304L 2000X800X500

(No reviews yet) Write a Review

Write a Review

Schneider Electric NSYSMX20850 Smx 304L 2000X800X500

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

NSYSMX20850

UPC:

3.61E+12

MPN:

Condition:

New

Product Or Component Type:

compact enclosure

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Lock Type:

3 points lock, handle with 5 mm double-bar insert

Range:

Spacial

Standards:

IEC 62208

Enclosure Nominal Height:

2000 mm

Mounting Plate Description:

without mounting plate

Door Type:

Solid

Enclosure Nominal Width:

800 mm

Product Certifications:

UL 508 || CAN/CSA 22

Sustainable Offer Status:

Green Premium product

Environmental Characteristic:

corrosive || specific hygiene

Installation Accessory Type:

floor-standing

Device Composition:

1 body || 1 cable gland plate || 1 locking system with handle door || 4 mounting plate bracket || 1 door

Environmental Disclosure:

ENVPEP2107011EN

Material:

body and door stainless steel 304L || handle zamak || hinge stainless steel

Circularity Profile:

N/A

Door Opening Side:

reversible 120 °)

Net Weight:

119 kg

Product Name:

Spacial SMX

Accessibility For Operation:

front

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Type Of Gland Plate:

plain

Ip Degree Of Protection:

IP66 IEC 60529

Rohs Exemption Information:

Yes

Removable Parts:

door by hinges || mounting plate bracket by screws || cable gland plate by clips

Number Of Doors:

front face 1

Ik Degree Of Protection:

IK10 IEC 62262

Warranty:

18 months

Enclosure Nominal Depth:

500 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Surface Finish:

enclosure Scotch-Brite® brushed || handle painted

Device Application:

multi-purpose

Body Type:

single piece body folded and welded

Brochure:

View

Catalog:

View

Datasheet:

View
