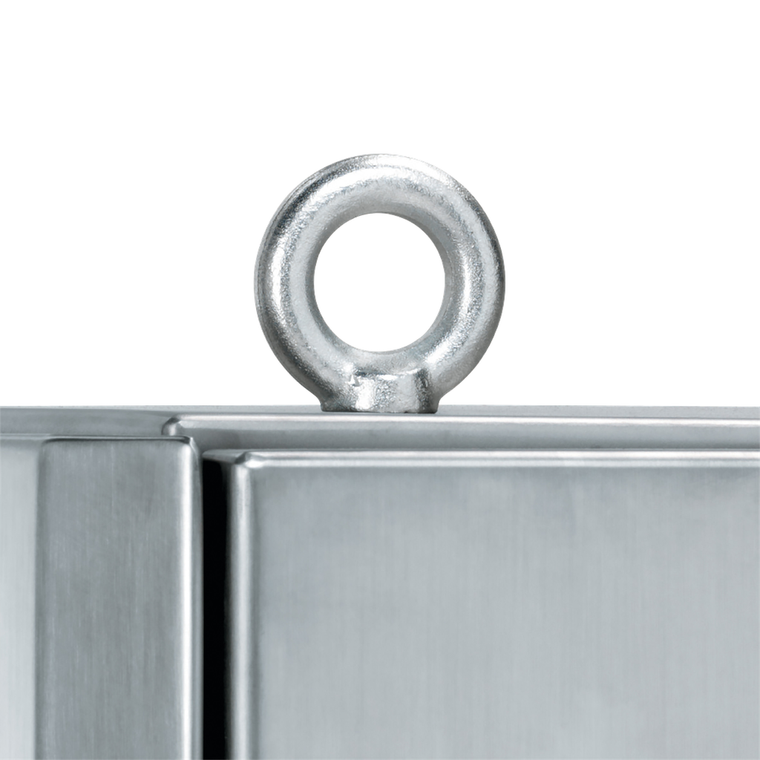

Schneider Electric NSYSMXEB Set 4 Stainless Steel Eyebolts M12

SKU:

NSYSMXEB

UPC:

3606489749101

MPN:

Condition:

New

Depth:

30 mm

Material:

stainless steel AISI 304

China Rohs Regulation:

Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure:

ENVPEP2107011EN

Rohs Exemption Information:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Device Composition:

4 eyebolt || 4 fixing nuts || 4 washer

Diameter:

30 mm

Iso Thread:

M12

Toxic Heavy Metal Free:

Yes

Permanent Permissible Load:

340 kg for 1 eyebolt vertical direction

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Application:

multi-purpose

Height:

73.5 mm

Sustainable Offer Status:

Green Premium product

Range:

Spacial

Mercury Free:

Yes

Mounting Location:

enclosure top

Range Compatibility:

Spacial Spacial SFX || Spacial Spacial SMX || Spacial Spacial SF || Spacial Spacial SM

Product Or Component Type:

lifting bracket || lifting eye

Width:

54 mm

Accessory / Separate Part Category:

lifting accessory

Circularity Profile:

N/A

Fixing Mode:

screwed

Reach Free Of Svhc:

Yes
